Nissan Rogue Service Manual: ECU diagnosis information

AROUND VIEW MONITOR CONTROL UNIT

Reference Value

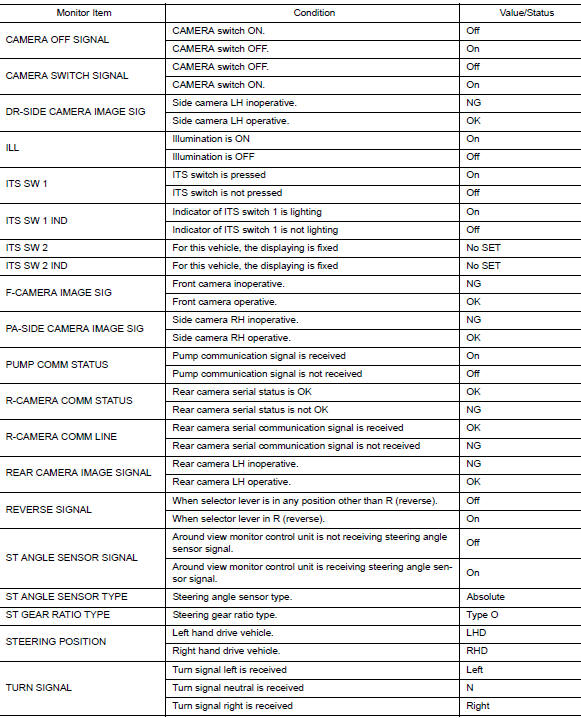

VALUES ON THE DIAGNOSIS TOOL

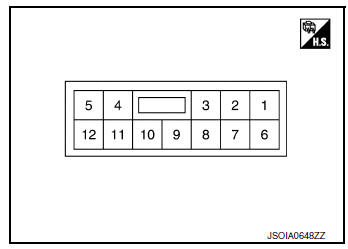

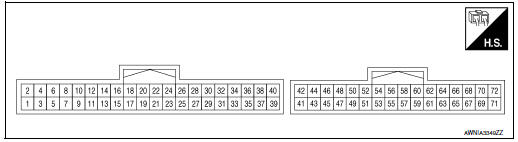

TERMINAL LAYOUT

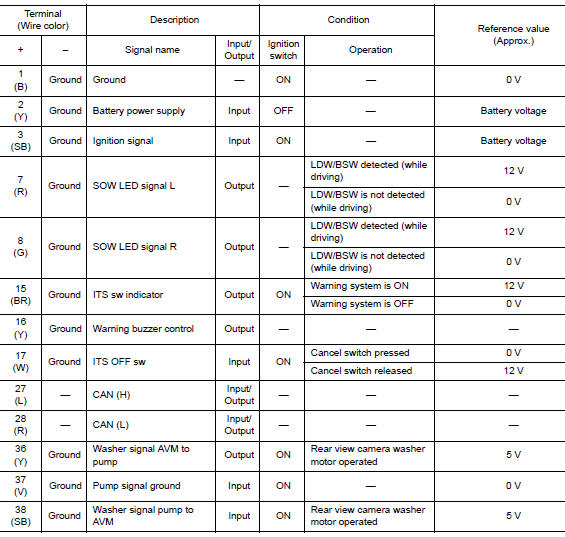

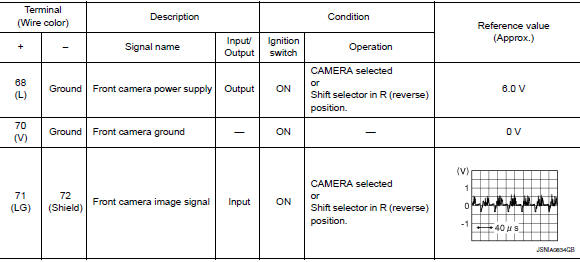

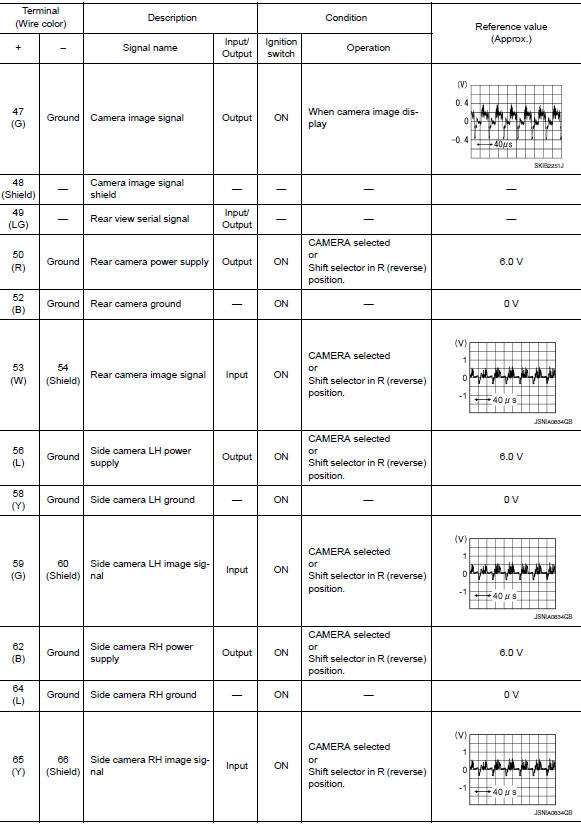

PHYSICAL VALUES

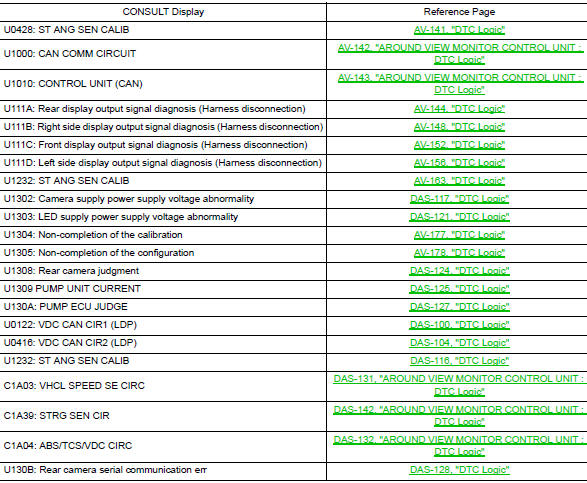

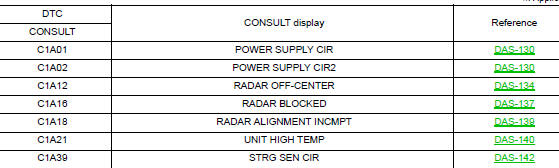

DTC Index

DISTANCE SENSOR

Reference Value

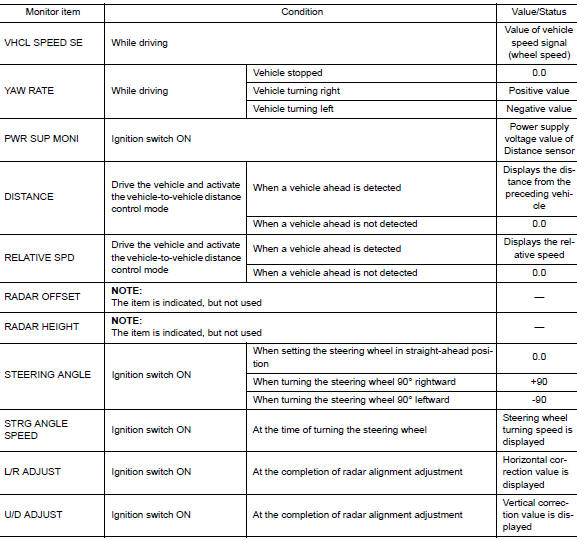

VALUES ON THE DIAGNOSIS TOOL

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

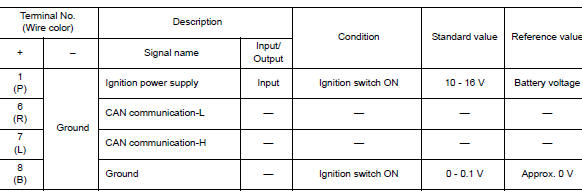

TERMINAL LAYOUT

PHYSICAL VALUES

Fail-safe (Distance Sensor)

If a malfunction occurs in the distance sensor, around view monitor control unit cancels control, sounds a beep, and turns ON the FCW system warning in the information display.

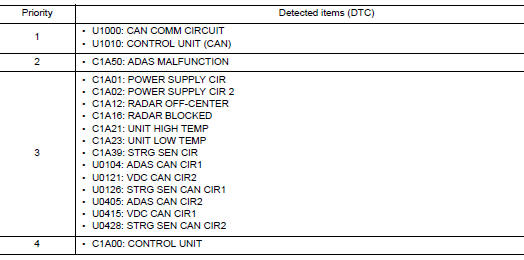

DTC Inspection Priority Chart

If multiple DTCs are detected simultaneously, check them one by one depending on the following DTC inspection priority chart.

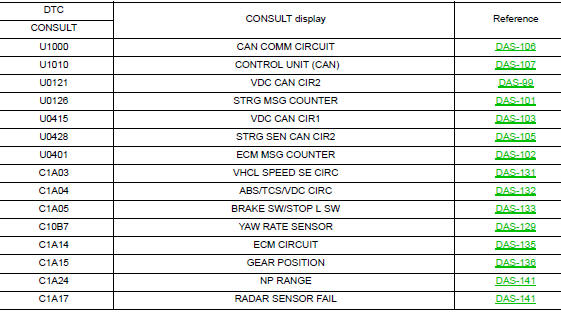

DTC Index

REAR VIEW CAMERA WASHER CONTROL UNIT

Reference Value

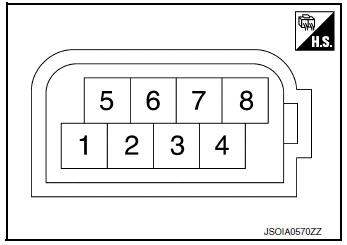

TERMINAL LAYOUT

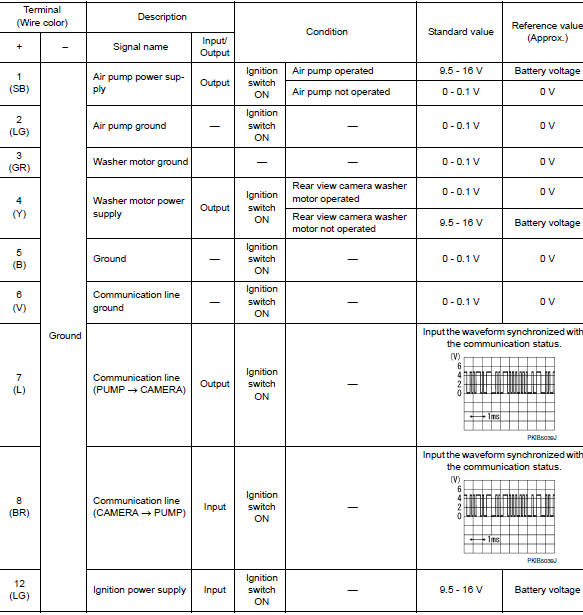

PHYSICAL VALUES
