Nissan Rogue Service Manual: Front seat

DRIVER SIDE

DRIVER SIDE : Exploded View

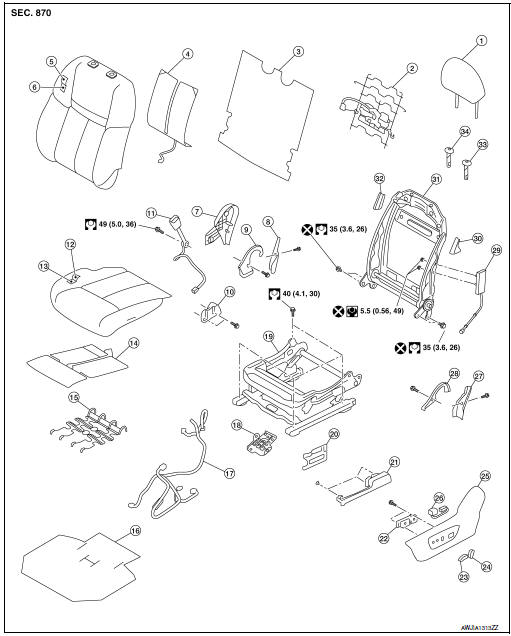

POWER SEAT

1. Headrest
2.  Seatback support
3.  Seatback board
4.  Seatback heater (if equipped)
5.  Seatback trim
6.  Seatback pad
7. Seat cushion outer finisher (RH)
8. Seat cushion rear finisher (RH)
9. Seat cushion inner finisher (RH)
10. Seat slide finisher (RH)
11. Seat belt buckle
12.  Seat cushion trim
13.  Seat cushion pad
14.  Seat cushion heater (if equipped)
15.  Seat cushion support
16.  Seat cushion silencer
17. Seat harness
18. Seat harness bracket
19.  Seat cushion frame
20. Seat slide finisher bracket (LH)
21.  Seat slide finisher (LH)
22.  Power seat switch
23. Seat slide knob
24.  Side recline knob
25.  Seat cushion outer finisher (LH)
26.  Lumbar support switch
27.  Seat cushion rear finisher (LH)
28.  Seat cushion inner finisher (LH)
29.  Side air bag module (not serviceable)
30.  Seatback bracket (LH)
31.  Seatback frame
32.  Seatback bracket (RH)
33.  Headrest holder (locked)
34.  Headrest holder (free)

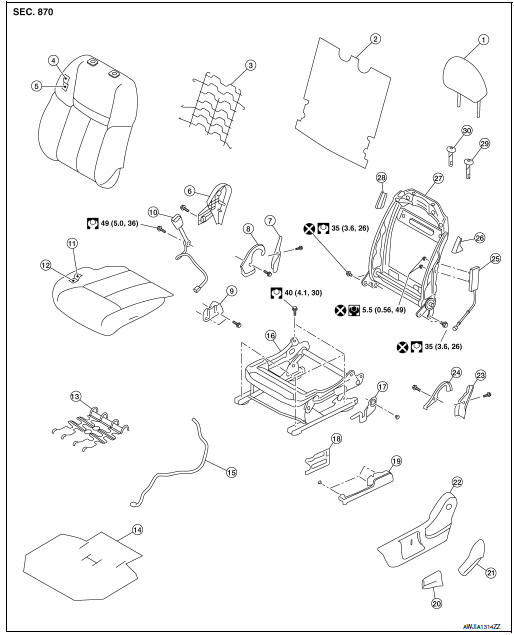

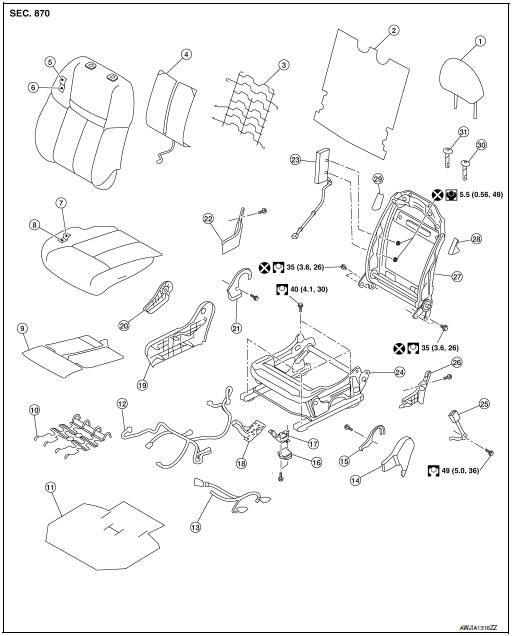

MANUAL SEAT

1. Headrest
2.  Seatback board
3. Seatback support
4.  Seatback trim
5. Seatback pad
6. Seat cushion outer finisher
7.  Seat cushion rear finisher (RH)
8. Seat cushion inner finisher (RH)
9.  Seat slide finisher (RH)
10. Seat belt buckle
11. Seat cushion trim
12.  Seat cushion pad
13. Seat cushion support
14.  Seat cushion silencer
15.  Seat harness
16.  Seat cushion frame
17.  Recline switch
18.  Seat slide finisher bracket (LH)
19.  Seat slide finisher (LH)
20.  Lift lever
21.  Recline lever
22.  Seat cushion outer finisher (LH)
23. Seat cushion rear finisher (LH)
24. Seat cushion inner finisher (LH)
25. Side air bag module (not serviceable)
26.  Seatback bracket (LH)
27.  Seatback frame
28.  Seatback bracket (RH)
29. Headrest holder (locked)
30. Headrest holder (free)

DRIVER SIDE : Removal and Installation

REMOVAL

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

•  When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
•  When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag module to deploy.
•  Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.
•  After front side air bag module inflates, the front seatback assembly must be replaced.
•  When removing and installing the seat, use shop cloths to protect components from damage.
•  Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then wait at least three minutes.

1.  Slide the seat to the full rearward position.
2.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
3.  Disconnect harness connector from side air bag module.
4.  Remove front bolts.
5.  Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to PG-77, "Removal and Installation" (power seat only).
6.  Slide the seat to the full forward position.
7.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
8.  Remove rear bolts.
9.  Tilt the seat rearward and disconnect the harness connectors from the seat.

   NOTE: Take note of harness routing and attachment locations for correct installation.

10.  Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

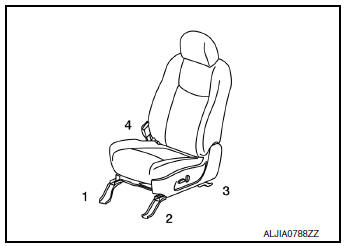

•  When installing the front seat (LH), tighten the bolts in the order shown.
•  Tighten the seat bolts to specification. Refer to SE-29, "DRIVER SIDE : Exploded View".

PASSENGER SIDE

PASSENGER SIDE : Exploded View

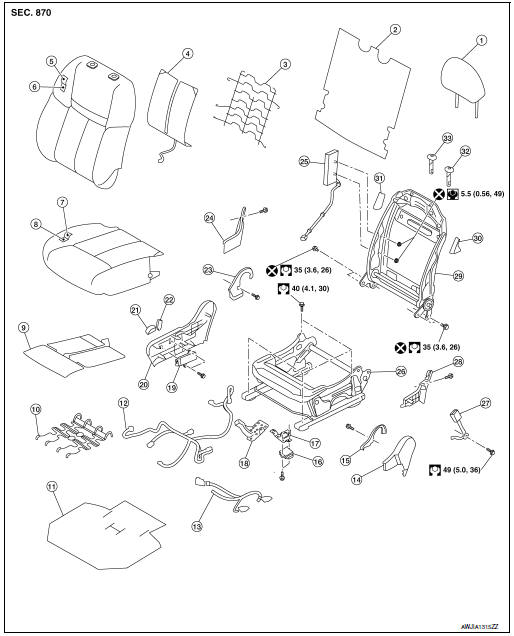

POWER SEAT

1. Headrest
2. Seatback board
3.  Seatback support
4.  Seatback heater
5. Seat cushion trim
6. Seat cushion pad
7.  Seat cushion trim
8. Seat cushion pad
9. Seat cushion heater
10. Seat cushion support
11.  Seat cushion silencer
12. Seat harness
13. Occupant classification system harness
14.  Seat cushion outer finisher (LH)
15.  Seat cushion inner finisher (LH)
16. Occupant classification system control unit
17.  Occupant classification system bracket
18.  Wiring harness bracket
19. Power seat switch
20.  Seat cushion outer finisher (RH)
21.  Seat slide knob
22.  Seat recline knob
23. Seat cushion inner finisher (RH)
24.  Seat cushion rear finisher (RH)
25.  Side air bag module (not serviceable)
26.  Seat cushion frame
27.  Seat belt buckle
28.  Seat cushion rear finisher (LH)
29.  Seatback frame
30.  Seatback bracket (LH)
31.  Seatback bracket (RH)
32.  Headrest holder (locked)
33. Headrest holder (free)

MANUAL SEAT

1. Headrest
2.  Seatback board
3. Seatback support
4. Seatback heater (if equipped)
5. Seatback trim
6. Seatback pad
7. Seat cushion trim
8. Seat cushion pad
9. Seat cushion heater (if equipped)
10.  Seat cushion support
11. Seat cushion silencer
12.  Seat harness
13.  Occupant classification system harness
14. Seat cushion outer finisher (LH)
15.  Seat cushion inner finisher (LH)
16.  Occupant classification system control unit
17. Occupant classification system control unit bracket
18.  Wiring harness bracket
19.  Seat cushion outer finisher
20. Recline lever
21.  Seat cushion inner finisher (RH)
22.  Seat cushion rear finisher (RH)
23.  Side air bag module (not serviceable)
24.  Seat cushion frame
25.  Seat belt buckle
26.  Seat cushion rear finisher (LH)
27.  Seatback frame
28.  Seatback bracket (LH)
29. Seatback bracket (RH)
30. Headrest holder (free)
31.  Headrest holder (locking)

PASSENGER SIDE : Removal and Installation

REMOVAL

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

•  When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
•  When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag module to deploy.
•  Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.
•  After front side air bag module inflates, the front seatback assembly must be replaced.
•  When removing and installing the seat, use shop cloths to protect components from damage.
•  Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then wait at least three minutes.

1.  Slide the seat to the full rearward position.
2.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
3.  Disconnect harness connector from side air bag module.
4.  Remove front bolts.
5.  Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to PG-77, "Removal and Installation" (power seat only).
6.  Slide the seat to the full forward position.
7.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
8.  Remove rear bolts.
9.  Tilt the seat rearward and disconnect the harness connectors from the seat.

   NOTE: Take note of harness routing and attachment locations for correct installation.

10.  Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

•  Perform additional services when installing front passenger seat. Refer to SRC-42, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description".
•  Zero point reset must be performed every time the front passenger seat is removed from the vehicle.
•  Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tightened to specification.

CAUTION: Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

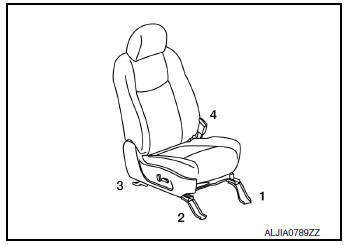

•  When installing the front seat (RH), tighten the bolts in the order shown.
•  Tighten the seat bolts to specification. Refer to SE-33, "PASSENGER SIDE : Exploded View".
