Nissan Rogue Service Manual: Glove box assembly and housing
Removal and Installation
REMOVAL

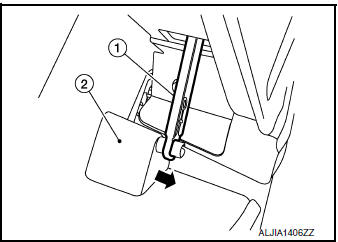

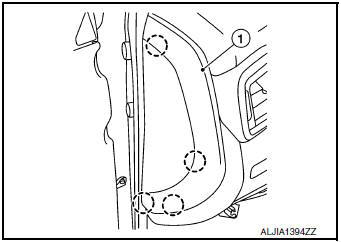

- Release instrument side finisher (RH) (1) pawls using a suitable tool and remove.
: Pawl
NOTE: LH side shown; RH similar.
- Release the glove box damper (1) from the glove box assembly (2) as shown.

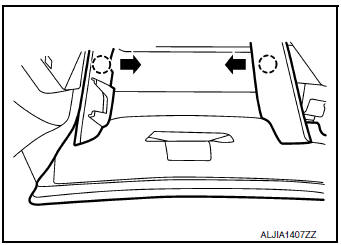

- Release the glove box assembly pawls as shown.
: Pawl

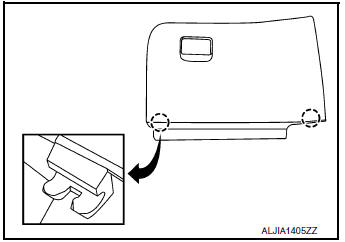

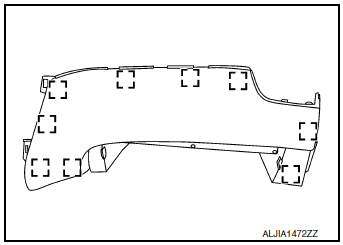

- Release the pawls and remove the glove box assembly.: Pawl
- Remove instrument finisher E. Refer to IP-16, "INSTRUMENT FINISHER E : Removal and Installation".
- Remove audio unit (DISPLAY AUDIO). Refer to AV-64, "Removal and Installation"
- Remove AV control unit. Refer to AV-209, "Removal and Installation" (NAVIGATION WITHOUT BOSE) or AV-376, "Removal and Installation" (NAVIGATION WITH BOSE).
- Remove front air control or A/C switch assembly. Refer to HAC-181, "Removal and Installation" (MANUAL AIR CONDITIONING) or HAC-102, "Removal and Installation" (AUTOMATIC AIR CONDITIONING).

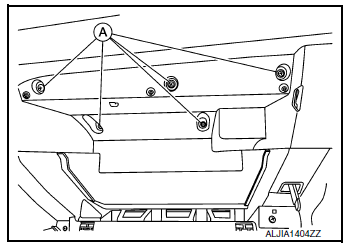

- . Remove the glove box housing screws (A).
- Release the clips using a suitable tool, disconnect the harness
connector and remove glove box housing.
: Metal clip
INSTALLATION
Installation is in the reverse order of removal.
Instrument lower panel LH
Removal and Installation
REMOVAL
Release instrument side finisher (LH) (1) pawls using a suitable
tool and remove.
: Pawl
Remove bolts (A) and fuel filler lid/hood lock release ...
