Nissan Rogue Owners Manual: Heater and Air Conditioner (automatic) (if so equipped)

Nissan Rogue Owners Manual / Monitor, climate, audio, phone and voice recognition systems / Heater and Air Conditioner (automatic) (if so equipped)

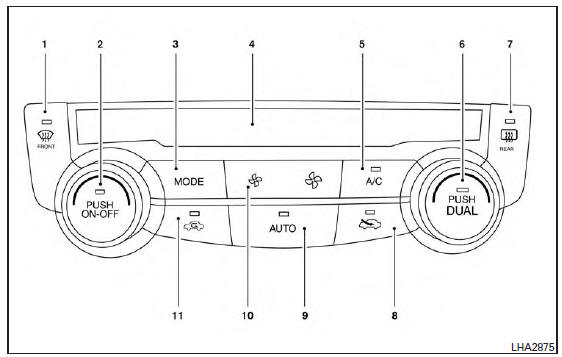

Heater and Air Conditioner

(front defroster) button
Temperature control dial (driver’s side) / ON-OFF button
MODE (manual air flow control) button
Display screen
A/C (air conditioner) button
Temperature control dial (passenger’s side)/DUAL (passenger’s side temperature control) button
(rear window and outside mirror (if so equipped) defroster) button
Fresh air intake button
AUTO (automatic mode) button
(fan speed control) buttons
Air recirculation button

WARNING

The air conditioner cooling function operates only when the engine is running.
Do not leave children or adults who would normally require the assistance of others alone in your vehicle. Pets should also not be left alone. They could accidentally injure themselves or others through inadvertent operation of the vehicle. Also, on hot, sunny days, temperatures in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to people or animals.
Do not use the recirculation mode for long periods as it may cause the interior air to become stale and the windows to fog up.

NOTE:

Odors from inside and outside the vehicle can build up in the air conditioner unit. Odor can enter the passenger compartment through the vents.
When parking, set the heater and air conditioner controls to turn off air recirculation to allow fresh air into the passenger compartment.
This should help reduce odors inside the vehicle.

Air flow charts

The following charts show the button and dial positions for MAXIMUM AND QUICK heating, cooling or defrosting. The air recirculation indicator should always be in the OFF position for heating and d ...

Automatic operation

Cooling and/or dehumidified heating (AUTO) This mode may be used all year round as the system automatically works to keep a constant temperature. Air flow distribution and fan speed are also cont ...
