Nissan Rogue Service Manual: Rear regulator

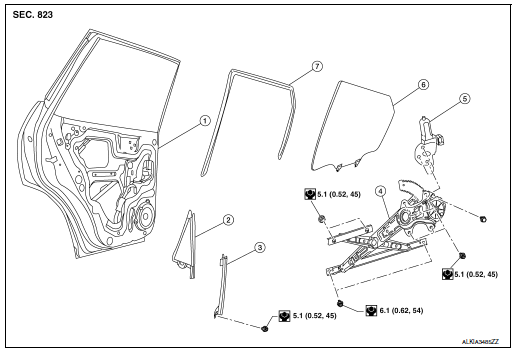

Exploded View

1. Rear door panel
2. Rear door glass corner finisher
3. Rear door glass rear run channel
4. Rear door regulator assembly
5. Rear door glass power window motor
6. Rear door glass
7.  Rear door glass rubber run channel

Removal and Installation

REMOVAL

1.  Remove the rear door finisher. Refer to INT-18, "Removal and Installation".

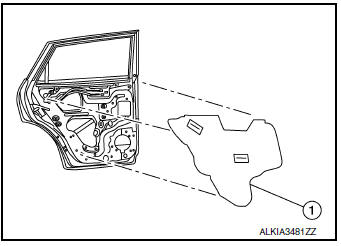

2.  Remove vapor barrier.

3. Temporarily reconnect the rear power window switch.

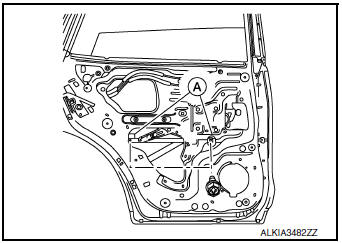

4. Operate the rear power window switch to raise/lower the rear door glass until the rear door glass regulator to rear door glass bolts (A) can be seen and remove.

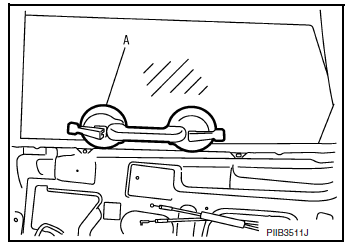

5. Raise the rear door glass and hold in place with suitable tool (A).

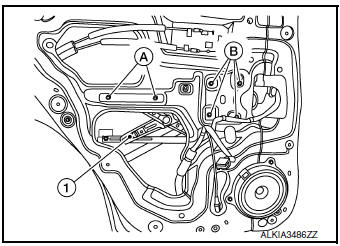

6. Remove the bolts (B) and nuts (A) from the rear door glass regulator (1).

7. Disconnect the harness connector from the rear door regulator (1).

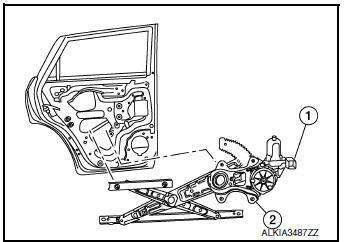

8. Remove rear door regulator (2).

INSPECTION AFTER REMOVAL

Check the rear door glass regulator for the following items:

•  Gear wear
•  Rear door glass regulator deformation
•  Spring damage
•  Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

INSTALLATION

Installation is in reverse order of removal.

CAUTION:

• Tighten the rear door regulator to specification Refer to GW-22, "Exploded View"
