BCM (BODY CONTROL MODULE)

Removal and Installation

CAUTION: Before replacing the BCM, perform “READ CONFIGURATION” to save or print current vehicle specification.

Refer to BCS-60, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure".

REMOVAL

1.  Disconnect the negative battery terminal. Refer to PG-77, "Removal and Installation".
2.  Remove the instrument lower panel LH. Refer to IP-22, "Removal and Installation".

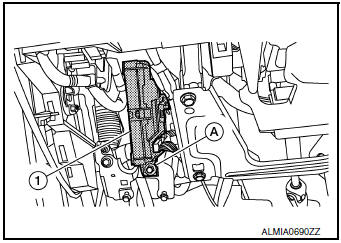

3.  Remove the bolt (A), then pull out the BCM (1).

4. Disconnect the harness connectors from the BCM and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  When replacing BCM, perform “WRITE CONFIGURATION” Refer to BCS-61, "CONFIGURATION (BCM) : Work Procedure".
•  When replacing BCM, perform the system initialization (NATS). Refer to the CONSULT immobilizer mode and follow the on-screen instructions.
•  When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be re-registered. Refer to the CONSULT immobilizer mode and follow the on screen instructions.

COMBINATION SWITCH

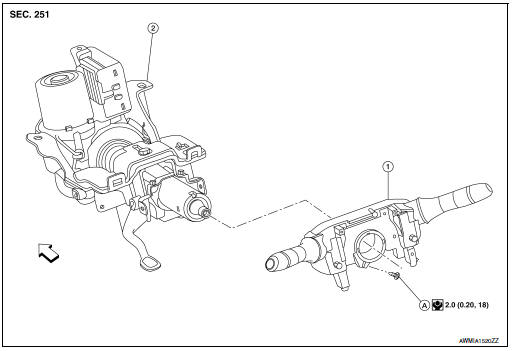

Exploded View

1. Combination switch
2. Steering column
1. Screw

Front

Removal and Installation

REMOVAL

1.  Remove the steering angle sensor. Refer to BRC-139, "Removal and Installation".
2.  Disconnect harness connector from combination switch.

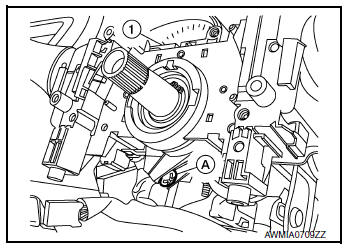

3.  Remove screw (A) and combination switch (1).

INSTALLATION

Installation is in the reverse order of removal.
