Nissan Rogue Service Manual: Second row seat belt

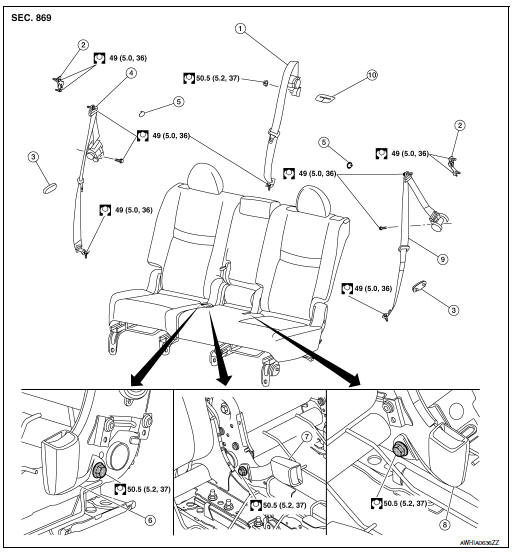

Exploded View

1. Seat belt retractor (center)
2. Seat belt D-ring bracket (LH/ RH)
3. Seat belt hook (LH/RH)
4. Seat belt retractor (RH)
5. Seat belt D-ring bolt cover (LH/RH)
6. Seat belt buckle (RH)
7.  Seat belt buckle (center)
8. Seat belt buckle (LH)
9. Seat belt retractor (LH)
10.  Seat belt center retractor outer finisher

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

SEAT BELT RETRACTOR - (LH/RH)

1. Remove luggage side upper finisher. Refer to INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation".
2.  Remove second row seat. Refer to SE-39, "Removal and Installation".

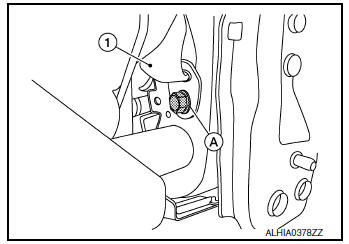

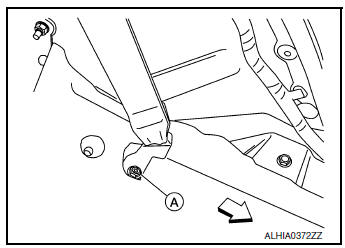

3.  Remove lower anchor bolt (A).

Front

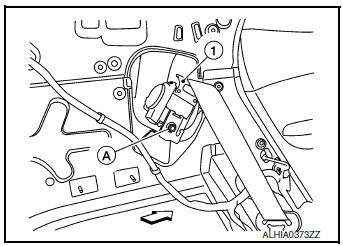

4. Remove seat belt retractor bolt (A) and remove seat belt retractor (1).

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer to SB-12, "Exploded View".
•  Make sure the D-ring anchor operates freely.
•  Always perform an inspection after repair to make sure the system is functioning within specifications.

  Refer to SB-5, "Inspection".

SEAT BELT RETRACTOR - (CENTER)

Removal

1.  Remove seatback pad and seatback trim (LH). Refer to SE-65, "LH SEAT : Seatback".

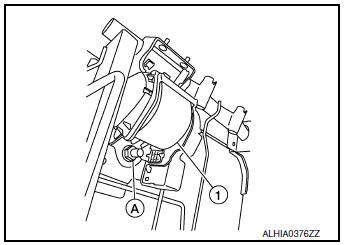

2.  Remove seat belt retractor lower anchor nut (A), then route seat belt retactor (1) through seat cushion (LH).

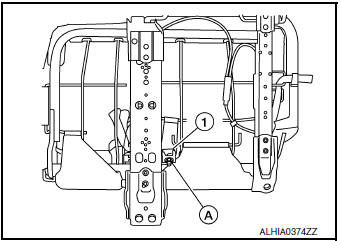

3. Remove seat belt retractor nut (A) and remove seat belt retactor (1) from rear seatback frame (LH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer to SB-12, "Exploded View".
•  Make sure the D-ring anchor operates freely.
•  Always perform an inspection after repair to make sure the system is functioning within specifications.

  Refer to SB-5, "Inspection".

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Removal and Installation

SEAT BELT BUCKLE - (LH)

Removal

1.  Remove second row seat (LH). Refer to SE-39, "Removal and Installation".

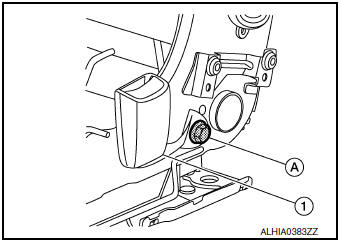

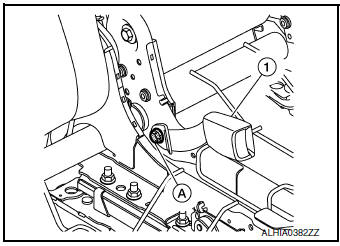

2.  Remove seat belt buckle (LH) anchor bolt (A), then route seat belt buckle (LH) (1) through seat cushion opening and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

•  Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
•  Always perform an inspection after repair to make sure the system is functioning within specifications.

  Refer to SB-5, "Inspection".

SEAT BELT BUCKLE - (CENTER)

Removal

1.  Remove second row seat (LH). Refer to SE-39, "Removal and Installation".

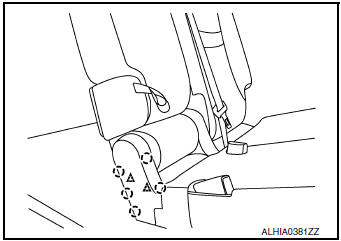

2. Using a suitable tool, release clips and pawls, then remove seat cushion outer finisher (RH).

Clip
Pawl

3. Remove second row seat (LH) (center) seat belt buckle anchor bolt (A), then route seat belt buckle (center) (1) through seat cushion opening and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

•  Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
•  Always perform an inspection after repair to make sure the system is functioning within specifications.

  Refer to SB-5, "Inspection".

SEAT BELT BUCKLE - (RH)

Removal

1.  Remove second row seat (RH). Refer to SE-39, "Removal and Installation".

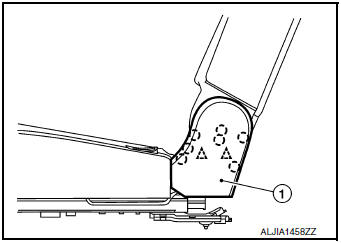

2.  Using a suitable tool release clips and pawls and remove seat cushion outer finisher (LH) (1).

: Clip
: Pawl

3. Remove seat belt buckle anchor bolt (A), then route seat belt buckle (RH) (1) through seat cushion and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

•  Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
•  Always perform an inspection after repair to make sure the system is functioning within specifications.

  Refer to SB-5, "Inspection".
