Nissan Rogue Service Manual: Air cleaner and air duct

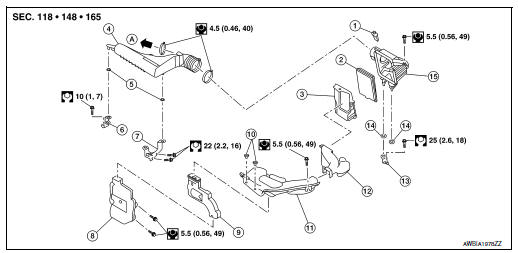

Exploded View

1. Mass air flow sensor
2. Air cleaner filter
3.  Air cleaner case (lower)
4.  Air duct assembly
5. Grommet
6. Resonator bracket (front)
7.  Resonator bracket (rear)
8. Resonator
9.  Air duct
10.  Mounting clip
11. Air duct assembly
12. Air cleaner case duct
13.  Air cleaner bracket
14. Grommet
15. Air cleaner case (upper)

1.  To Electric throttle control actuator

Removal and Installation

REMOVAL

NOTE: Mass air flow sensor is removable under the car-mounted condition.

1.  Remove cowl top extension. Refer to EXT-25, "Removal and Installation".
2.  Remove air cleaner filter. Refer to EM-16, "Removal and Installation".
3.  Remove air duct assembly from air cleaner case (lower).
4.  Remove air cleaner case (lower).
5.  Disconnect harness connector from mass air flow sensor.
6.  Remove air cleaner case (upper).
7.  Remove mass air flow sensor from air cleaner case (upper) (if necessary).
8.  Separate air cleaner case duct from air cleaner case (lower) and air duct assembly.
9.  Remove air duct from air duct assembly and resonator.
10.  Remove resonator.

INSTALLATION

Installation is in the reverse order of removal.

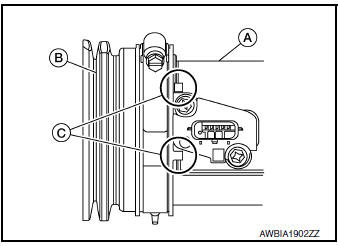

• Align mating marks (C) of air duct assembly (B) with air cleaner case (upper) (A) as shown.

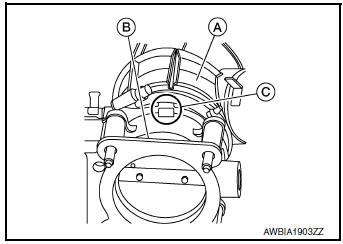

• Align mating marks (C) of air duct assembly (A) with electric throttle control actuator (B) as shown.

Inspection

INSPECTION AFTER REMOVAL

Inspect air duct and resonator assembly for cracks or tears.

•  If anything found, replace air duct and resonator assembly.
