Nissan Rogue Service Manual: Back door outer finisher

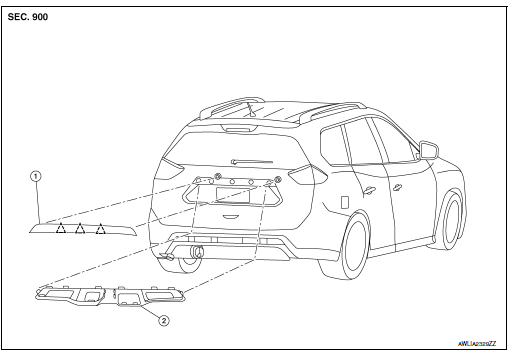

Exploded View
- Back door outer finisher
- License lamp finisher
Clip
Removal and Installation
REMOVAL
- Remove back door finisher. Refer to INT-38, "Removal and Installation".

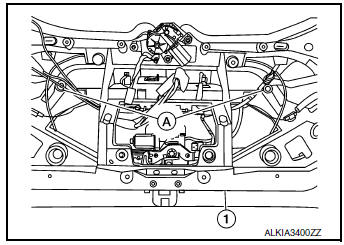

- Remove plugs (A) from back door (1).
- Remove back door outer finisher nuts.

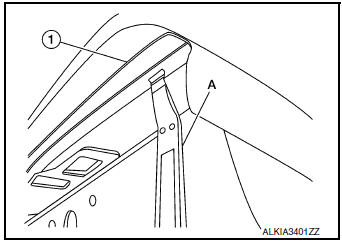

- Release clips using suitable tool (A) and remove back door outer finisher (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When installing back door outer finisher, check that clips are securely placed in back door panel holes.
Side air spoiler
Exploded View
Side air spoiler
Clip
Removal and Installation
REMOVAL
Remove side air spoiler bolts (A).
1: Side air spoiler
B: Clips
Release clips using suitable ...
