Nissan Rogue Service Manual: Blower motor

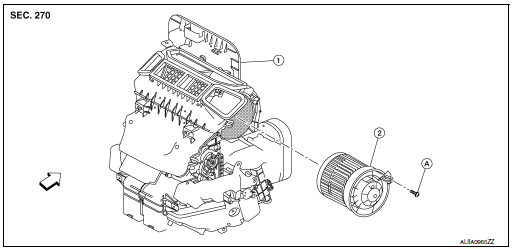

Exploded View
- Heating and cooling unit assembly
- Blower motor
- Screw
Front
Removal and Installation
REMOVAL
- Remove glove box assembly. Refer to IP-23, "Removal and Installation".
- Disconnect the harness connector from the blower motor.

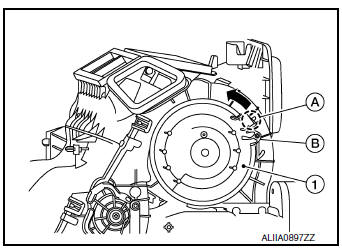

- Remove blower motor screw (B).
- Release hook (A) then rotate the blower motor (1) counterclockwise and remove.
: Hook
INSTALLATION
Installation is in the reverse order of removal.
