Nissan Rogue Service Manual: C1197 vacuum sensor

Nissan Rogue Service Manual / Brakes / Brake Control System / DTC/circuit diagnosis / C1197 vacuum sensor

DTC Logic

DTC DETECTION LOGIC

DTC Display Item Malfunction detected condition Possible causes
C1197 VACUUM SENSOR When a malfunction is detected in vacuum sensor.
  • Harness or connector
  •  Vacuum sensor (brake booster)
  •  Vacuum piping
  •  ABS actuator and electric unit (control unit)

DTC CONFIRMATION PROCEDURE

1.CHECK SELF-DIAGNOSTIC RESULT

With CONSULT.

  1.  Turn the ignition switch ON.
  2.  Perform self-diagnostic result.

Is DTC C1197 detected? YES >> Proceed to diagnosis procedure. Refer to BRC-105, "Diagnosis Procedure".

NO >> Inspection End.

Diagnosis Procedure

Regarding Wiring Diagram information, refer to BRC-57, "Wiring Diagram".

1.CHECK BRAKE BOOSTER

  1.  Turn the ignition switch OFF.
  2.  Check brake booster. Refer to BR-10, "Inspection".

Is the inspection result normal? YES >> GO TO 2.

NO >> Replace brake booster. Refer to BR-30, "Removal and installation".

2.CHECK VACUUM PIPING

Check vacuum piping. Refer to BR-32, "Exploded View".

Is the inspection result normal? YES >> GO TO 3.

NO >> Replace vacuum piping. Refer to BR-32, "Removal and Installation".

3.CHECK VACUUM SENSOR CIRCUIT

  1.  Disconnect vacuum sensor harness connector.
  2.  Disconnect ABS actuator and electric unit (control unit) harness connector.
  3.  Check continuity between vacuum sensor harness connector and ABS actuator and electric unit (control unit) harness connector.

Check vacuum sensor circuit

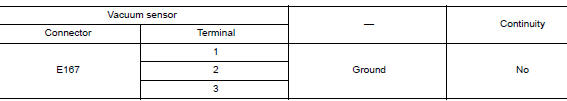

  1. Check continuity between vacuum sensor harness connector and ground.

Check vacuum sensor circuit

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace malfunctioning components.

4.CHECK TERMINAL

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace malfunctioning components.

5.REPLACE VACUUM SENSOR

With CONSULT

  1.  Connect ABS actuator and electric unit (control unit) harness connector.
  2.  Replace vacuum sensor. Refer to BR-30, "Exploded View".

    CAUTION: Always replace brake booster because vacuum sensor cannot be disassembled.

  3.  Erase self-diagnosis result for “ABS”.
  4.  Turn the ignition switch OFF.
  5.  Start engine.
  6.  Perform self-diagnosis for “ABS”.

Is DTC “C1197” detected? YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-136, "Removal and Installation".

NO >> Inspection End.
