Nissan Rogue Service Manual: Calibration of decel G sensor

Description

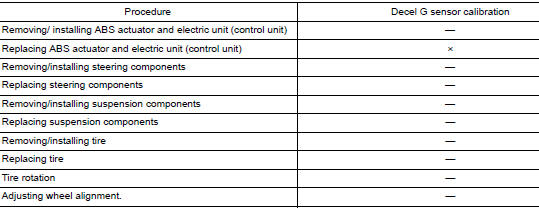

CAUTION: Always perform the decel G sensor calibration before driving when the following operation is performed.

NOTE: Yaw rate/side/decel G sensor calibration is performed when performing the decel G sensor calibration.

Work Procedure

Decel G sensor calibration

CAUTION: Always use CONSULT for the decel G sensor calibration. (It cannot be adjusted other than with CONSULT.) NOTE: Yaw rate/side/decel G sensor calibration is performed when performing the decel G sensor calibration.

1.CHECK THE VEHICLE STATUS

1.  Steer the steering wheel to the straight-ahead position. Stop the vehicle on level surface.
2.  Stop the engine.
3.  Turn the ignition switch OFF.

Is the vehicle stopped in the straight-ahead position on level surface? YES >> GO TO 2.

NO >> Steer the steering wheel to the straight-ahead position. Stop the vehicle on level surface.

2.PERFORM DECEL G SENSOR CALIBRATION

CAUTION:

•  Never allow passenger or load on the vehicle.
•  Never apply vibration to the vehicle body when opening or closing door during calibration.

With CONSULT

1. Turn the ignition switch ON.

   CAUTION: Never start engine.

2. Select “ABS”, “WORK SUPPORT”, “DECEL G SEN CALIBRATION” in this order.
3.  Select “START”.
4.  After approx. 10 seconds, select “END”.
5.  Turn ignition switch OFF and then turn it ON again.

CAUTION: Be sure to perform the operation above. >> GO TO 3.

3.CHECK DATA MONITOR

With CONSULT

1.  Drive the vehicle. Steer the steering wheel to the straight-ahead position. Stop the vehicle on level surface.
2.  Select “ABS”, “DATA MONITOR”, “ECU INPUT SIGNALS” and “DECEL G SENSOR” in this order. Check that the signal is within the specified value.

DECEL G SENSOR : Approx. ± 0.01 G

Is the inspection result normal? YES >> GO TO 4.

NO >> GO TO 1.

4.ERASE SELF-DIAGNOSIS MEMORY

With CONSULT

Erase self-diagnosis result of “ABS”.

Are the memories erased? YES >> Inspection End.

NO >> Check the items indicated by the self-diagnosis.
