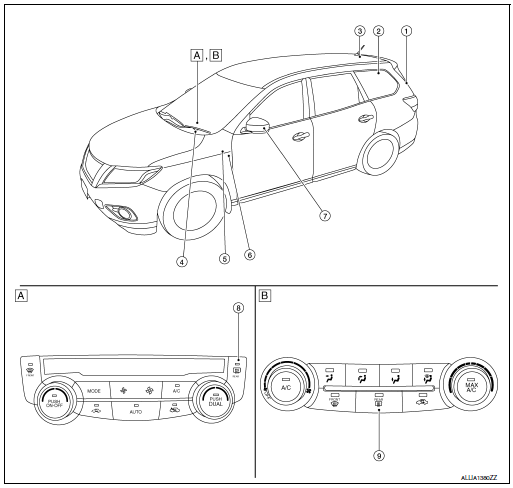

Component Parts Location

Component Parts Location

A/C switch (auto A/C)
Front air control (manual A/C)

No.	Component	Description
1	Rear window defogger connector (Rear window defogger)	Refer to DEF-5, "Rear window defogger".
2	Rear window defogger connector (Rear window defogger)	Refer to DEF-5, "Rear window defogger".
3	Rear window defogger condenser	Removes the noise that is generated when rear window defogger turns ON/OFF.
4	A/C auto amp.1	Displays the rear window defogger ON to the display when detecting the operation of the rear window defogger.
5	BCM	Operates the rear window defogger with the operation of rear window defogger switch. Performs the timer control of rear window defogger.
6	Rear window defogger relay	Operates the rear window defogger and the door mirror defogger with the control signal from BCM.
7	Door mirror defogger3	Refer to DEF-5, "Door mirror defogger".
8	A/C switch1 (rear window defogger switch)	The rear window defogger switch is turned ON. Turns the indicator lamp ON when detecting the operation of rear window defogger.
9	Front air control2 (rear window defogger switch)	The rear window defogger switch is turned ON. Turns the indicator lamp ON when detecting the operation of rear window defogger.

1: With auto A/C
2: With manual A/C
3: With heated mirrors

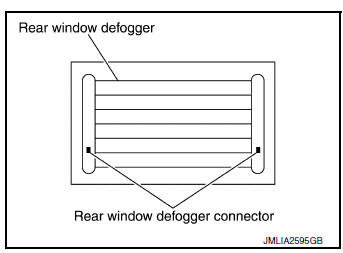

Rear window defogger

Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window from fogging up.

Rear window defogger

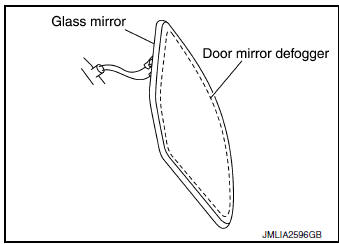

Door mirror defogger

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror from fogging up.

Door mirror defogger

System

System Description SYSTEM DIAGRAM OPERATION DESCRIPTION When rear window defogger switch is turned ON while ignition switch is ON, the rear window defogger switch transmits rear w ...
