Nissan Rogue Service Manual: Component parts

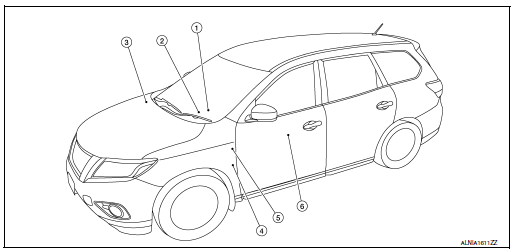

Component Parts Location
|
No. |
Component |
Function |
| 1 | Key switch | Transmits the key switch signal to the BCM.
Refer to SEC-115, "Component Parts Location" (without Intelligent Key system) for detailed installation location. |
| 2 | Combination meter |
|
| 3 | ABS actuator and electric unit (control unit) | Transmits the vehicle speed signal to the combination meter via CAN
communication.
Refer to BRC-8, "Component Parts Location" for detailed installation location. |
| 4 | Parking brake switch | Transmits the parking brake switch signal to the combination meter. |
| 5 | BCM | Based on the signals received from various units and switches,
transmits the buzzer output signal
to the combination meter via CAN communication.
Refer to BCS-7, "BODY CONTROL SYSTEM : Component Parts Location" (with Intelligent Key system) or BCS-79, "BODY CONTROL SYSTEM : Component Parts Location" (without Intelligent Key system) for detailed installation location. |
| 6 | Seat belt buckle switch LH | Transmits a seat belt buckle switch signal LH to the combination meter. |
Combination Meter

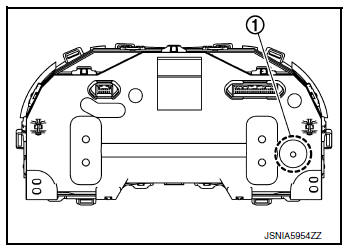

The combination meter has a built-in buzzer (1) and sounds the following warnings, according to signals from each switch and unit:
- Light reminder warning
- Parking brake release warning chime
- Seat belt warning
- Key warning chime
System
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM : System Description
SYSTEM DIAGRAM (WITH INTELLIGENT KEY SYSTEM)
SYSTEM DIAGRAM (WITHOUT INTELLIGENT KEY SYSTEM)
COMBINATION METER INPUT/OUTPUT S ...
