Nissan Rogue Service Manual: Condenser
Removal and Installation
REMOVAL
- Partially lower headlining (rear). Refer to INT-30, "Removal and Installation".
- Disconnect the harness connectors from the condenser.

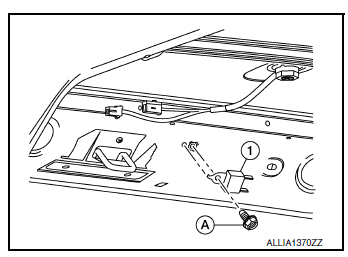

- Remove the bolt (A) and the condenser (1).
INSTALLATION
Installation is in the reverse order of removal.
