Nissan Rogue Service Manual: P0447 EVAP canister vent control valve

Nissan Rogue Service Manual / Engine / Engine Control System / DTC/Circuit diagnosis / P0447 EVAP canister vent control valve

DTC Description

DTC DETECTION LOGIC

DTC No. CONSULT screen terms (Trouble diagnosis content) DTC detecting condition
P0447 VENT CONTROL VALVE (Evaporative emission system vent control circuit open) An improper voltage signal is sent to ECM through EVAP canister vent control valve.

POSSIBLE CAUSE

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

  1.  Turn ignition switch OFF and wait at least 10 seconds.
  2.  Turn ignition switch ON.
  3.  Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION: Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

  1.  Start engine and wait at least 8 seconds.
  2.  Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Proceed to EC-319, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.INSPECTION START

Do you have CONSULT? Do you have CONSULT? YES >> GO TO 2.

NO >> GO TO 3.

2.CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT

With CONSULT

  1.  Turn ignition switch OFF and then turn ON.
  2.  Select “VENT CONTROL/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
  3.  Touch “ON/OFF” on CONSULT screen.
  4.  Check for operating sound of the valve.

Clicking sound should be heard.

Is the inspection result normal? YES >> GO TO 7.

NO >> GO TO 3.

3.CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY

  1.  Turn ignition switch OFF.
  2.  Disconnect EVAP canister vent control valve harness connector
  3.  Turn ignition switch ON.
  4. Check the voltage between EVAP canister vent control valve harness connector and ground.

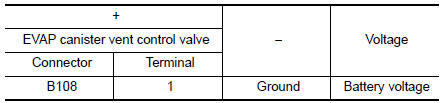

Check EVAP canister vent control valve power supply

Is the inspection result normal? YES >> GO TO 5.

NO >> GO TO 4.

4.CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect IPDM E/R harness connector.
  3.  Check the continuity between EVAP canister vent control valve harness connector and IPDM E/R harness connector.

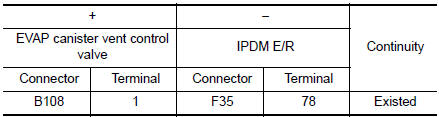

Check EVAP canister vent control valve power supply circuit

  1. Also check harness for short to ground.

Is the inspection result normal? YES >> Perform the trouble diagnosis for power supply circuit.

NO >> Repair or replace error-detected parts.

5.CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect ECM harness connector.
  3.  Check the continuity between EVAP canister vent control valve harness connector and ECM harness connector.

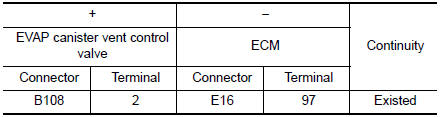

Check EVAP canister vent control valve output signal circuit

  1. Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace error-detected parts.

6.CHECK RUBBER TUBE FOR CLOGGING

  1.  Disconnect rubber tube connected to EVAP canister vent control valve.
  2.  Check the rubber tube for clogging.

Is the inspection result normal? YES >> GO TO 7.

NO >> Clean the rubber tube using an air blower.

7.CHECK EVAP CANISTER VENT CONTROL VALVE

Check the EVAP canister vent control valve. Refer to EC-321, "Component Inspection".

Is the inspection result normal? YES >> GO TO 8.

NO >> Replace EVAP canister vent control valve. Refer to FL-21, "Removal and Installation"

8.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> INSPECTION END

Component Inspection

1.CHECK EVAP CANISTER VENT CONTROL VALVE-1

  1.  Turn ignition switch OFF.
  2.  Remove EVAP canister vent control valve from EVAP canister.
  3.  Check portion A of EVAP canister vent control valve for being rusted.

Is it rusted? YES >> Replace EVAP canister vent control valve. Refer to FL- 21, "Removal and Installation".

NO >> GO TO 2.

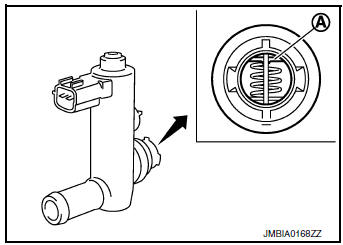

Check EVAP canister vent control valve-1

2.CHECK EVAP CANISTER VENT CONTROL VALVE-2

With CONSULT

  1.  Reconnect harness connectors disconnected.
  2.  Turn ignition switch ON.
  3.  Perform “VENT CONTROL/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
  4.  Check air passage continuity and operation delay time.

Make sure new O-ring is installed properly.

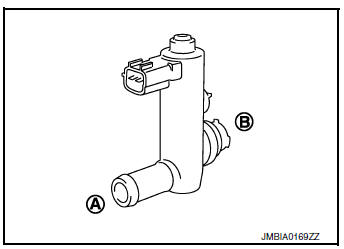

Check EVAP canister vent control valve-2

Condition (VENT CONT/V) Air passage continuity between A and B
ON Not existed
OFF Existed

Operation takes less than 1 second.

Without CONSULT

Check air passage continuity and operation delay time under the following conditions.

Make sure new O-ring is installed properly.

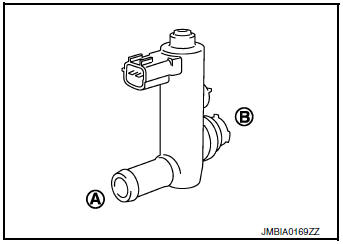

Check EVAP canister vent control valve-2

Condition Air passage continuity between A and B
12 V direct current supply between terminals 1 and 2 Not existed
OFF Existed

Operation takes less than 1 second.

Is the inspection result normal? YES >> GO TO 3.

NO >> Replace EVAP canister vent control valve. Refer to FL-21, "Removal and Installation".

3.CHECK EVAP CANISTER VENT CONTROL VALVE-3

With CONSULT

  1.  Clean the air passage [portion to ] A of B EVAP canister vent control valve using an air blower.
  2.  Perform “VENT CONTROL/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
  3.  Check air passage continuity and operation delay time.

    Make sure new O-ring is installed properly.

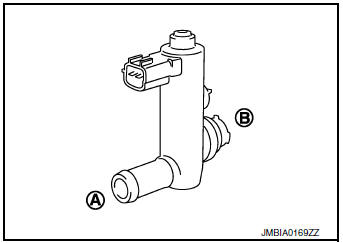

Check EVAP canister vent control valve-3

Condition (VENT CONT/V) Air passage continuity between A and B
ON Not existed
OFF Existed

Operation takes less than 1 second.

Without CONSULT

  1.  Clean the air passage [portion A to B] of EVAP canister vent control valve using an air blower.
  2.  Check air passage continuity and operation delay time under the following conditions.

Make sure new O-ring is installed properly.

Check EVAP canister vent control valve-3

Condition Air passage continuity between A and B
12 V direct current supply between terminals 1 and 2 Not existed
OFF Existed

Operation takes less than 1 second.

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace EVAP canister vent control valve. Refer to FL-21, "Removal and Installation".
