Nissan Rogue Service Manual: CVT control system

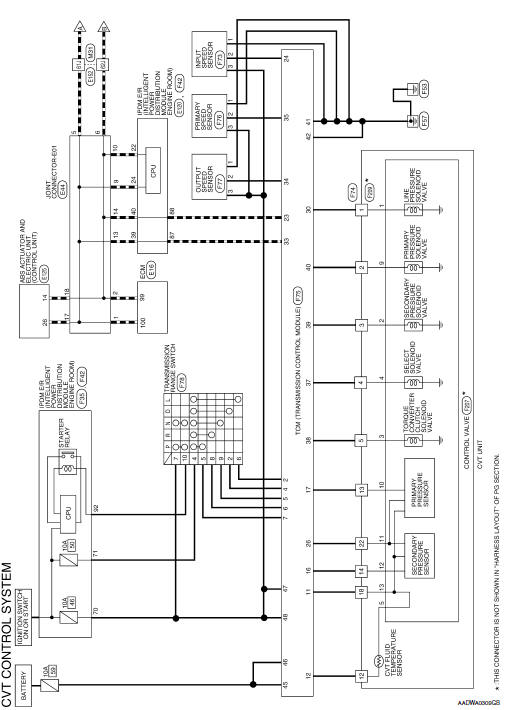

Wiring Diagram

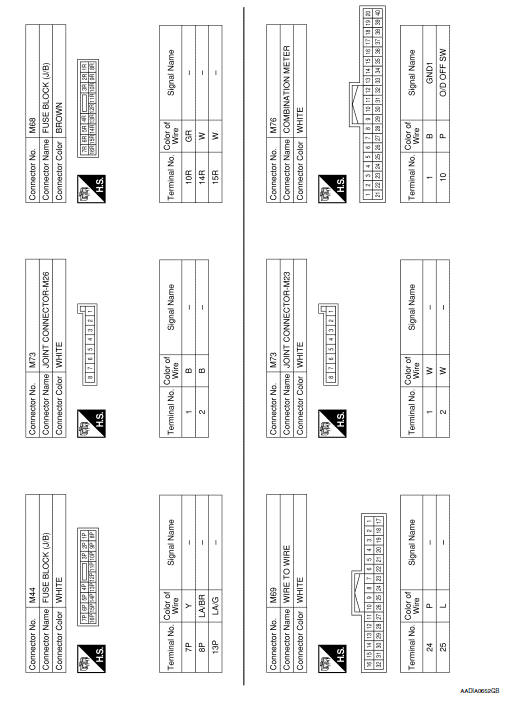

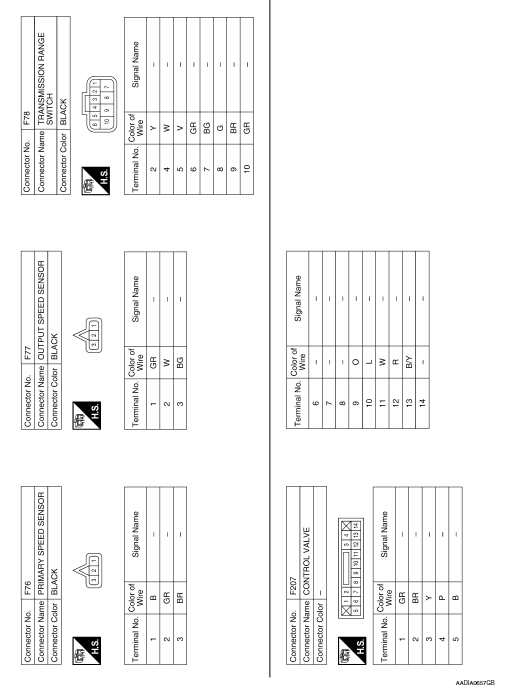

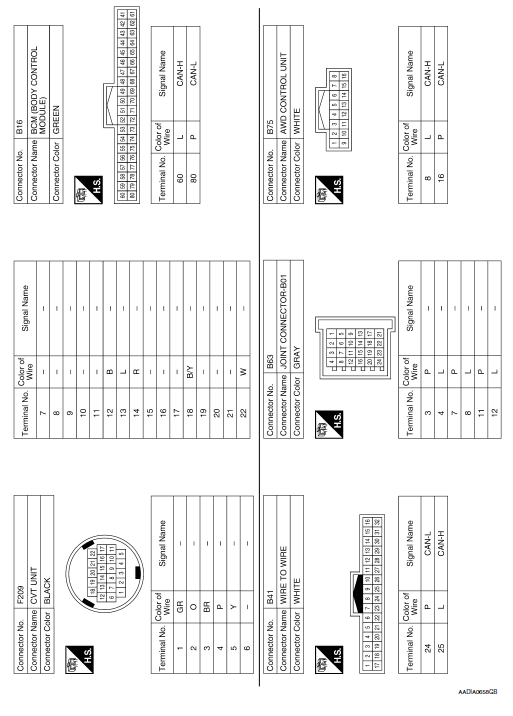

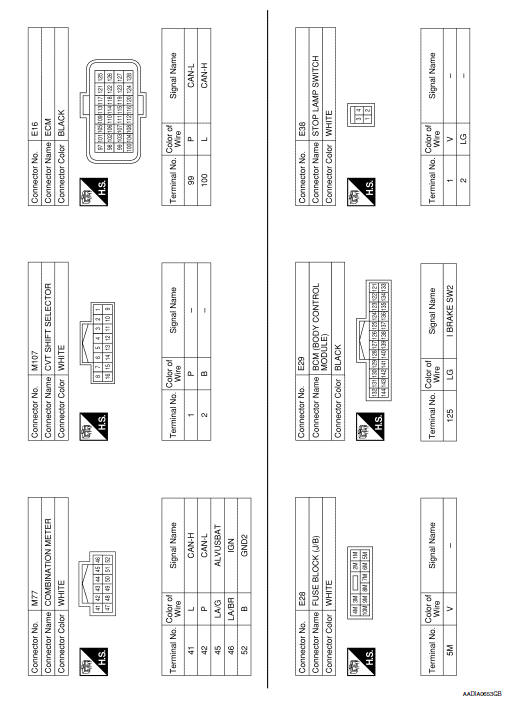

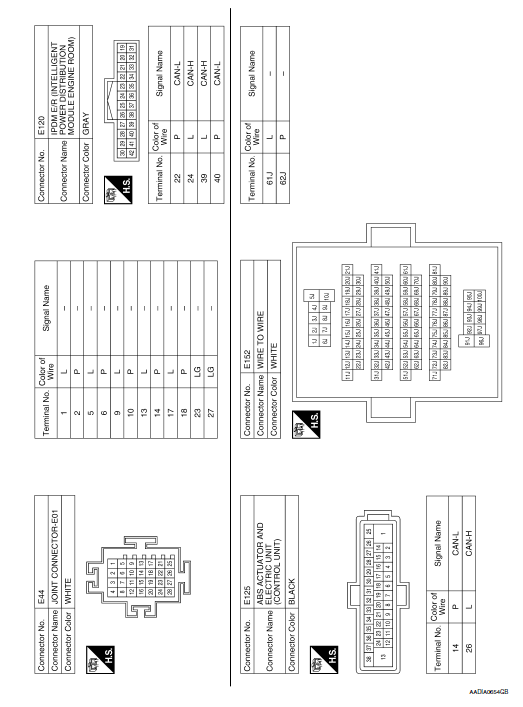

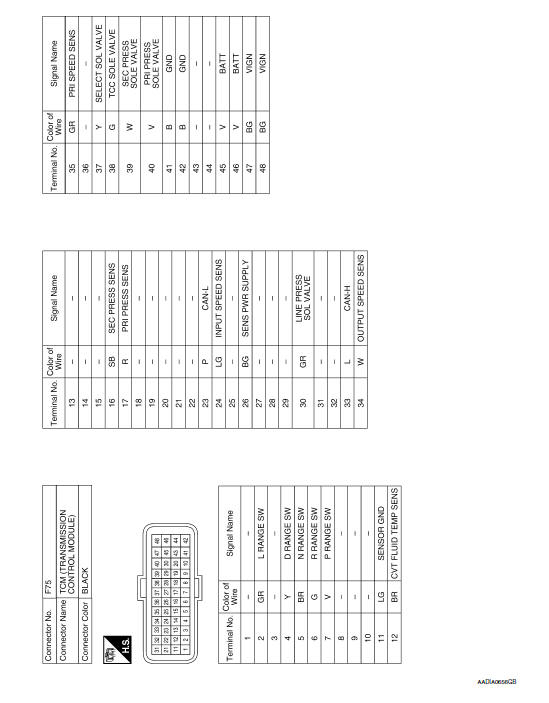

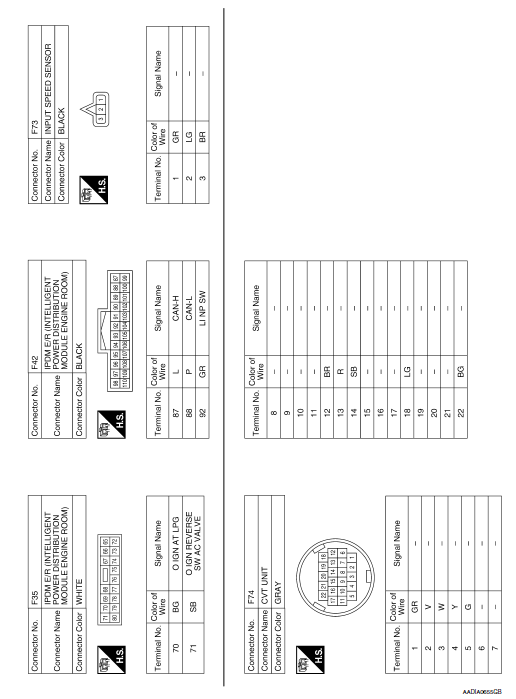

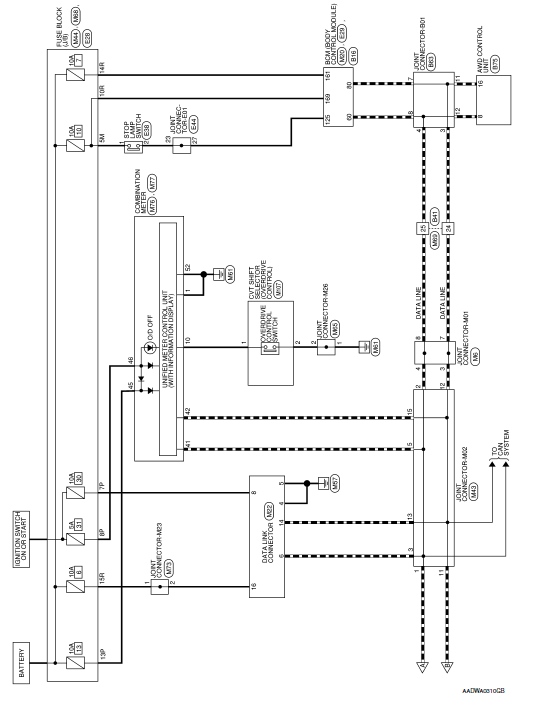

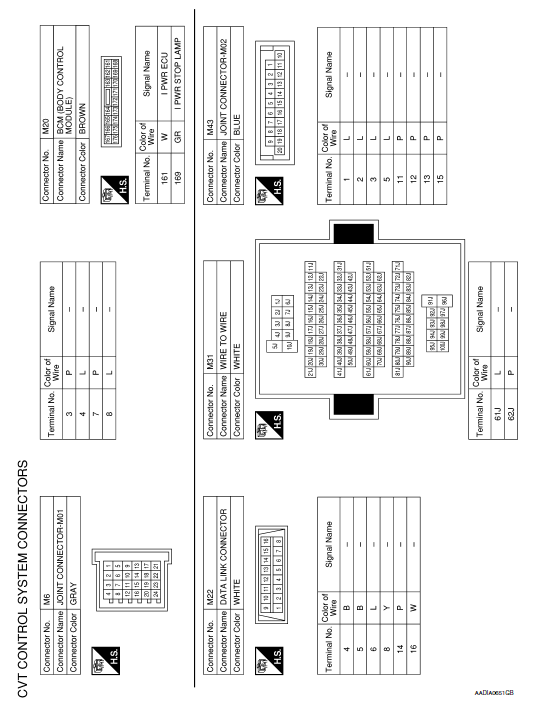

Wiring diagram
...
CVT shift lock system
Wiring Diagram
...
