Nissan Rogue Owners Manual: Difference between predicted and actual distances

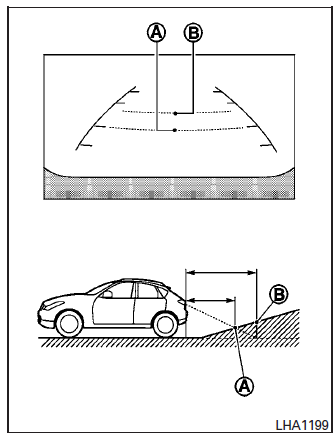

Backing up on a steep uphill

When backing up the vehicle up a hill, the distance guide lines and the vehicle width guide lines are shown closer than the actual distance.

For example, the display shows 3 ft (1.0 m) to the place A , but the actual 3 ft (1.0 m) distance on the hill is the place B . Note that any object on the hill is further than it appears on the monitor.

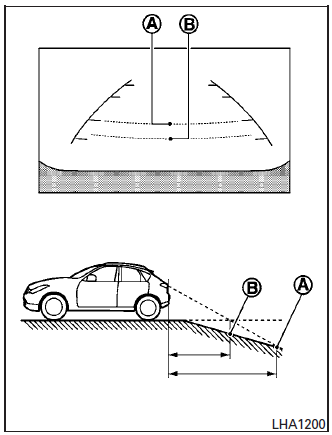

Backing up on a steep downhill

When backing up the vehicle down a hill, the distance guide lines and the vehicle width guide lines are shown farther than the actual distance.

For example, the display shows 3 ft (1.0 m) to the place A , but the actual 3 ft (1.0 m) distance on the hill is the place B . Note that any object on the hill is closer than it appears on the monitor.

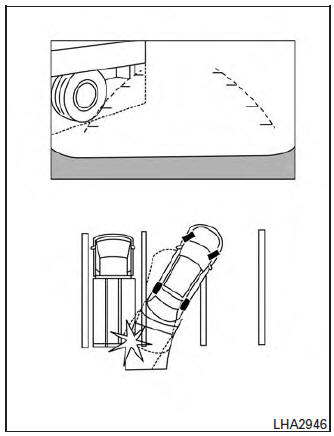

Backing up near a projecting object

The vehicle may seem to nearly clear the object in the display. However, the vehicle may hit the object if it projects over the actual backing up course.

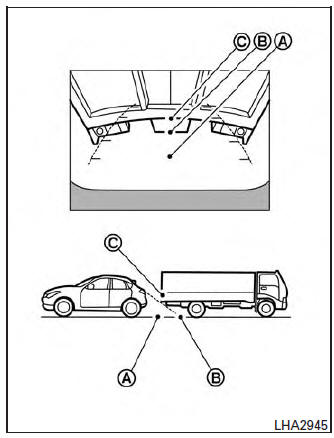

Backing up behind a projecting object

The position C is shown farther than the position B in the display. However, the position C is actually at the same distance as the position A .

The vehicle may hit the object when backing up to the position A if the object projects over the actual backing up course.

OPERATING TIPS

•  When the shift lever is shifted to the R (Reverse) position, the monitor screen automatically changes to the RearView Monitor mode. However, the radio can be heard.
•  When the view is switched, the display images on the screen may be displayed with some delay.
•  When the temperature is extremely high or low, the screen may not clearly display objects.

  This is not a malfunction.

•  When strong light is directly coming on the camera, objects may not be displayed clearly. This is not a malfunction.
•  Vertical lines may be seen in objects on the screen. This is due to strong reflected light from the bumper. This is not a malfunction.
•  The screen may flicker under fluorescent light. This is not a malfunction.
•  The colors of objects on the RearView Monitor may differ somewhat from the actual color of objects. This is not a malfunction.
•  Objects on the monitor may not be clear in a dark environment. This is not a malfunction.
•  If dirt, rain or snow accumulates on the camera, the RearView Monitor may not display object clearly. Clean the camera.
•  Do not use alcohol, benzine or thinner to clean the camera. This will cause discoloration.

  To clean the camera, wipe with a cloth dampened with diluted mild cleaning agent and then wipe with a dry cloth.

•  Do not damage the camera as the monitor screen may be adversely affected.
•  Do not use wax on the camera window.

  Wipe off any wax with a clean cloth dampened with mild detergent diluted with water.
