Nissan Rogue Service Manual: Door mirror rear finisher
Removal and Installation
REMOVAL

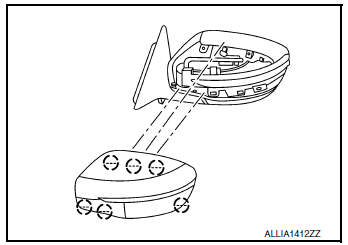

- Beginning at the top of door mirror rear finisher and working
around, use a suitable tool to release the pawls and remove
door mirror rear finisher.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: After installation, visually check that all the pawls are securely engaged.
Door mirror glass
Removal and Installation
REMOVAL
Release the metal clips and pawls that retain the door mirror
glass using a suitable tool, disconnect the harness connectors
(A) (if equipped) from the ...
Side camera finisher
Removal and Installation
The side camera finisher (if equipped) or door mirror lower finisher is
serviced as part of the door mirror rear
finisher. Refer to MIR-25, "Removal and Installation& ...
