Nissan Rogue Service Manual: Door mirror glass
Removal and Installation
REMOVAL

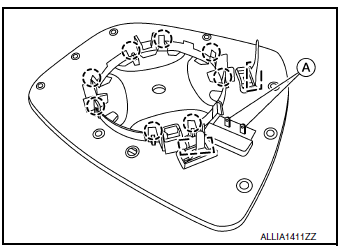

- Release the metal clips and pawls that retain the door mirror
glass using a suitable tool, disconnect the harness connectors
(A) (if equipped) from the door mirror glass and remove.
Metal clip
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: After installation, visually inspect that metal clips and pawls are securely engaged.
Door mirror
Exploded View
Door mirror
Door mirror corner finisher
Door mirror rear finisher
Side turn signal lamp
Side camera (if equipped)
Door mirror glass
Pawl
Removal an ...
Door mirror rear finisher
Removal and Installation
REMOVAL
Beginning at the top of door mirror rear finisher and working
around, use a suitable tool to release the pawls and remove
door mirror rear finisher.
: ...
