Nissan Rogue Service Manual: Door outside molding

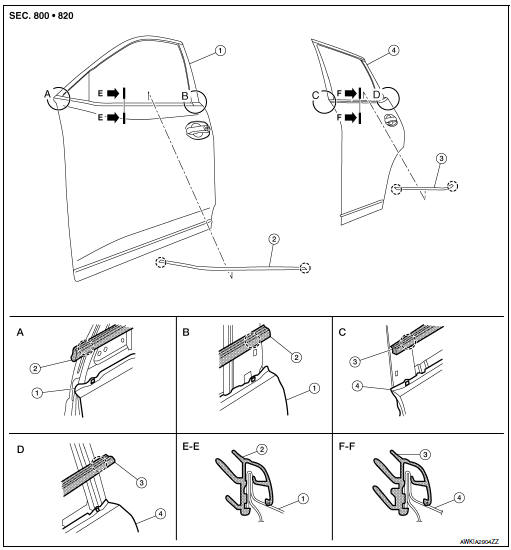

Exploded View
- Front door panel
- Front door outside molding
- Rear door panel
- Rear door outside molding
Pawl
Removal and Installation
FRONT DOOR OUTSIDE MOLDING
Removal
- Lower front door glass.
- Remove door mirror. Refer to MIR-22, "Removal and Installation".

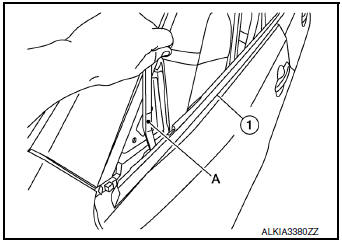

- Release front pawl then rear pawl using a suitable tool (A) and remove door outside molding (1).
Installation
Installation is in the reverse order of removal.
REAR DOOR OUTSIDE MOLDING
Removal
- Lower rear door glass.

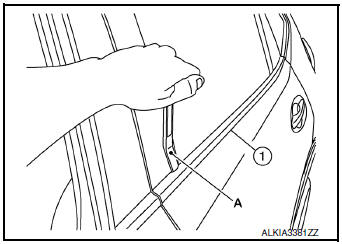

- Release front pawl then rear pawl using a suitable tool (A) and remove door outside molding (1).
Installation
Installation is in the reverse order of removal.
Door sash molding
Exploded View
Front door sash molding
Rear door rear sash molding
Front door panel
Rear door panel
Roof rail side outer
Body side outer
Rear door weather strip
Rear door glas ...
Roof rack
Exploded View
Roof rack rear bolt cover
Roof rack front bolt cover
Roof rack
Roof side molding
Back door hinge cover
Metal Clip
Pawl
Removal and Installation
RE ...
