Nissan Rogue Service Manual: Roof rack

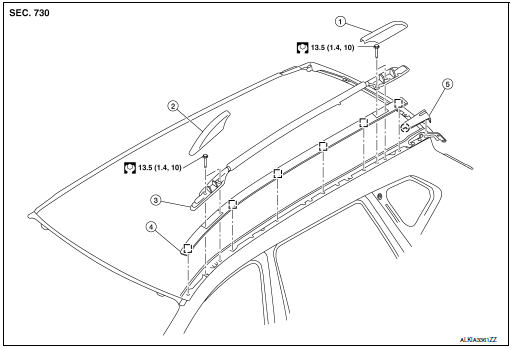

Exploded View
- Roof rack rear bolt cover
- Roof rack front bolt cover
- Roof rack
- Roof side molding
- Back door hinge cover
Metal Clip
Pawl
Removal and Installation
REMOVAL

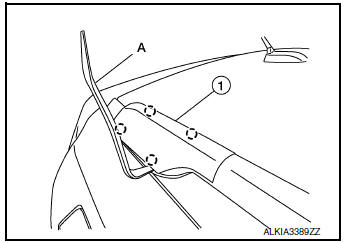

- Release pawls and remove roof rack front and rear cover (1)
using suitable tool (A).: Pawl
- Remove bolts and remove roof rack.
INSTALLATION
Installation is in the reverse order of removal.
Door outside molding
Exploded View
Front door panel
Front door outside molding
Rear door panel
Rear door outside molding
Pawl
Removal and Installation
FRONT DOOR OUTSIDE MOLDING
Removal
& ...
Door outside lower molding
Exploded View
Rear door outside lower molding
Front door outside lower molding
Clip
Front
Removal and Installation
FRONT DOOR OUTSIDE LOWER MOLDING
Removal
