Nissan Rogue Owners Manual: Engine compartment check locations
Engine compartment check locations

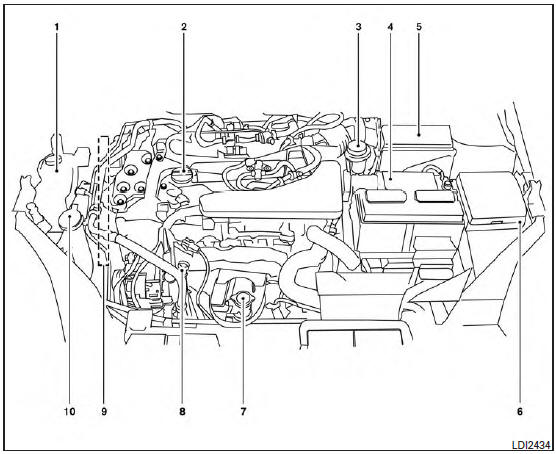

QR25DE engine
- Engine coolant reservoir
- Engine oil filler cap
- Brake fluid reservoir
- Battery
- Air cleaner
- Fuse/Fusible link box
- Radiator cap
- Engine oil dipstick
- Drive belt location
- Windshield-washer fluid reservoir
* Engine cover removed for clarity.
Maintenance precautions
When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precautions ...
Engine cooling system
The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze and
coolant ...
