Nissan Rogue Service Manual: EVAP control system pressure sensor

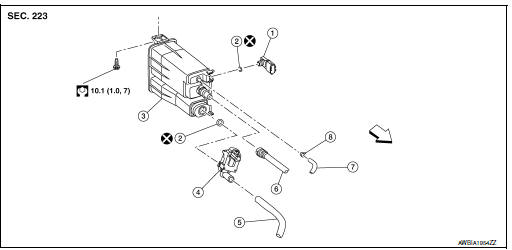

Exploded View
- EVAP control system pressure sensor
- O-ring
- EVAP canister
- EVAP canister vent control valve
- EVAP canister vent control valve hose
- EVAP vent line
- EVAP canister purge hose
- Clamp
Front
Removal and Installation
NOTE: The EVAP canister system pressure sensor can be removed without removing the EVAP canister.
REMOVAL
- Disconnect EVAP canister purge hose from EVAP canister.
- Disconnect EVAP control system pressure sensor.
- Remove EVAP control system pressure sensor and O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Do not reuse O-ring.
