Nissan Rogue Service Manual: EVAP canister filter

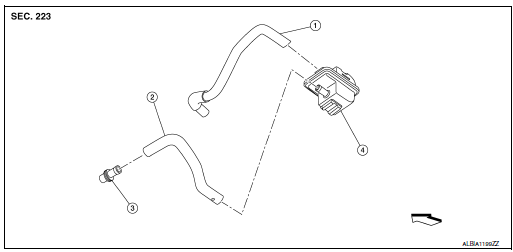

Exploded View
- EVAP canister vent control valve hose
- Canister drain hose
- Plug
- EVAP canister filter
Front
Removal and Installation
REMOVAL
- Disconnect EVAP canister vent control valve hose from EVAP canister filter.
- Disconnect canister drain hose from EVAP canister filter.
- Remove the bolt and the EVAP canister filter.
INSTALLATION
Installation is in the reverse order of removal.
EVAP control system pressure sensor
Exploded View
EVAP control system pressure sensor
O-ring
EVAP canister
EVAP canister vent control valve
EVAP canister vent control valve hose
EVAP vent line
E ...
Disassembly and assembly
FUEL LEVEL SENSOR UNIT
Exploded View
Fuel Level Sensor Unit
Fuel filter and pump assembly
Fuel level sensor unit
Float arm assembly
Fuel tank temperature sensor
Disassembly and As ...
