Nissan Rogue Service Manual: Front grille
Exploded View
- Front bumper fascia
- Front camera (if equipped)
- Front grille
- Front emblem
Pawl
Clip
Removal and Installation
REMOVAL

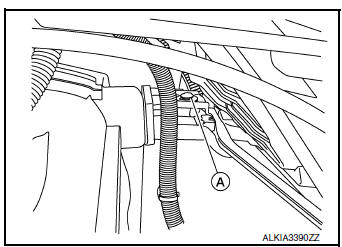

- Remove front grille upper clip (A) (LH/RH).

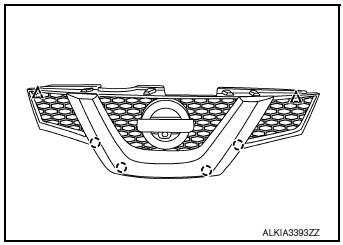

- Release clips and pawls, then remove front grille.: Clip
: Pawl

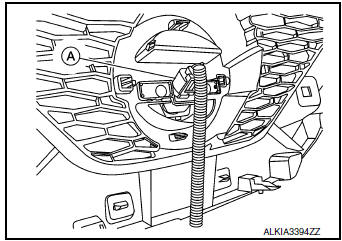

- Disconnect harness connector (A) from front camera (if equipped).
- Remove the following parts after removing front grille (if necessary).
- Front camera (if equipped). Refer to AV-388, "Removal and Installation".
- Front emblem
INSTALLATION
Installation is in the reverse order of removal.
NOTE: Calibration must be performed after removing/replacing the front camera (if equipped). Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".
