Nissan Rogue Service Manual: Cowl top

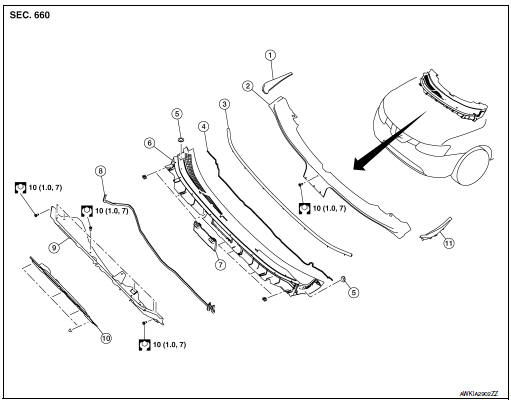

Exploded View

1. Cowl top side trim cover (RH)
2. Cowl top cover screen
3.  Cowl top cover seal
4.  EPT seal
5. Cowl top cover plug
6. Cowl top cover
7. Cowl top cover mask
8. Cowl top extension seal
9. Cowl top extension
10. Cowl top insulation
11. Cowl top side trim cover (LH)

Removal and Installation

COWL TOP COVER

Removal

1.  Remove front wiper arms (LH/RH). Refer to WW-63, "Removal and Installation".

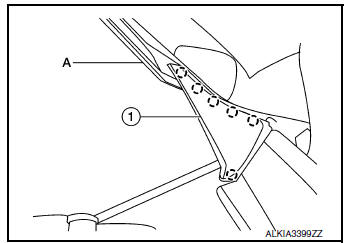

2. Release pawls using suitable tool (A) and remove cowl top side trim cover (1) (LH/RH).

   : Pawl

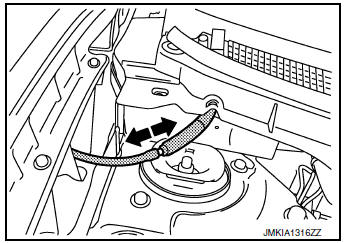

3. Disconnect front washer tube connector.

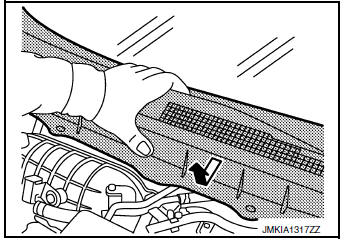

4. Remove cowl top cover clips, then pull forward to release cowl top cover and remove.

CAUTION: When performing the procedure after removing cowl top cover, cover the lower end of windshield glass with urethane etc.

5. Remove the following parts after removing cowl top cover (if necessary).

•  Cowl top seal
•  Cowl top cover plug
•  Washer nozzle, Refer to WW-60, "Removal and Installation - Front Washer Nozzle".
•  Washer tube,WW-60, "Removal and Installation - Front Washer Nozzle".
•  EPT sealer

Installation

Installation is in the reverse order of removal.

CAUTION: When installing cowl top cover, check that clips are securely fitted in body panel holes and then press them in.

COWL TOP EXTENSION

Removal

1.  Remove the front wiper drive assembly. Refer to WW-66, "Removal and Installation".
2.  Remove the cowl top extension bolts and the cowl top extension.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When installing cowl top cover, check that clips are securely placed in panel holes on body and then pressed in.

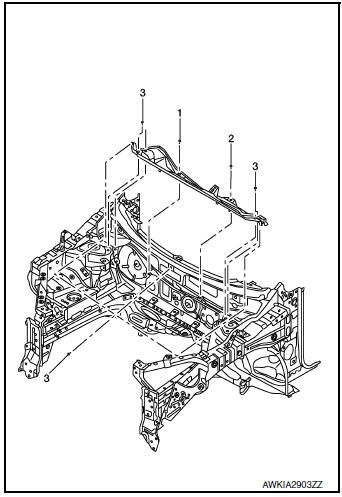

NOTE: When installing the cowl top extension, tighten the bolts to specification in the order shown.
