Nissan Rogue Service Manual: Front washer nozzle and tube

Nissan Rogue Service Manual / Driver controls / Wiper & Washer / Removal and installation / Front washer nozzle and tube

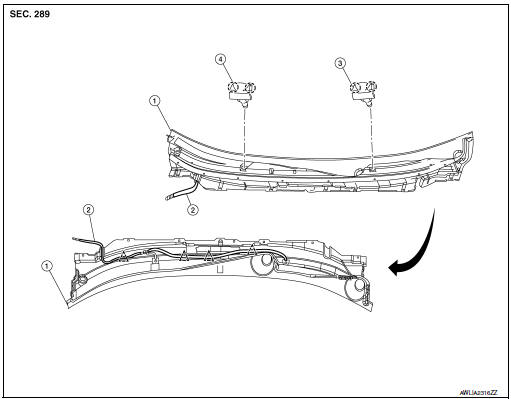

Exploded View

Exploded View

  1. Cowl top cover
  2. Front washer tube
  3. Front washer nozzle (LH)
  4.  Front washer nozzle (RH)

Pawl
Clip

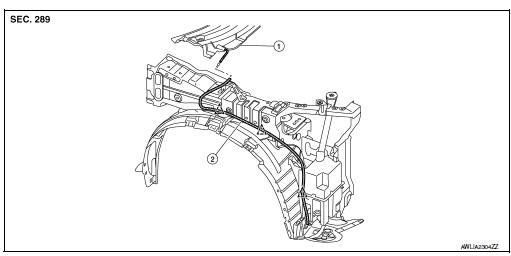

Exploded View

Exploded View

  1. Cowl top cover
  2. Front washer tube

Clip

Removal and Installation - Front Washer Nozzle

REMOVAL

  1.  Remove front wiper arms (LH/RH). Refer to WW-63, "Removal and Installation".

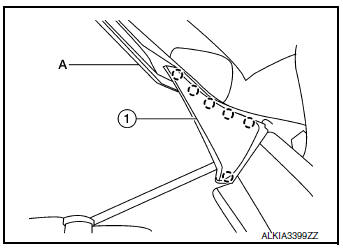

  2. Release pawls using suitable tool (A) and remove cowl top side trim cover (1) (LH/RH).

    : Pawl

Removal

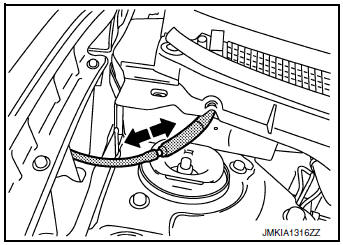

  1. Disconnect front washer tube connector.

Removal

  1. Release pawls and remove front washer nozzle (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Adjust the nozzle spray pattern. Refer to WW-61, "Inspection and Adjustment".

Removal and Installation - Front Washer Tube

REMOVAL

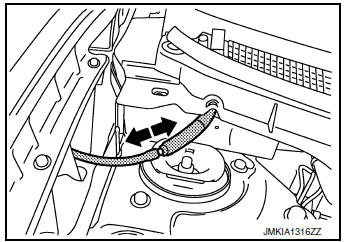

  1.  Disconnect front washer tube connector.

Removal

  1. Remove engine side cover. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
  2.  Remove engine undercover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
  3.  Partially remove fender protector. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
  4.  Unclip front washer hose and remove.

INSTALLATION

Installation is in the reverse order of removal.

Inspection and Adjustment

WASHER TUBE INSPECTION

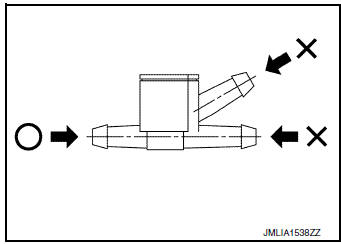

Check that air can pass through the check valve splitter by blowing into the check valve splitter and that air cannot flow in the opposite direction.

O: Air can flow
X: Air cannot flow

Washer tube inspection

ADJUSTMENT

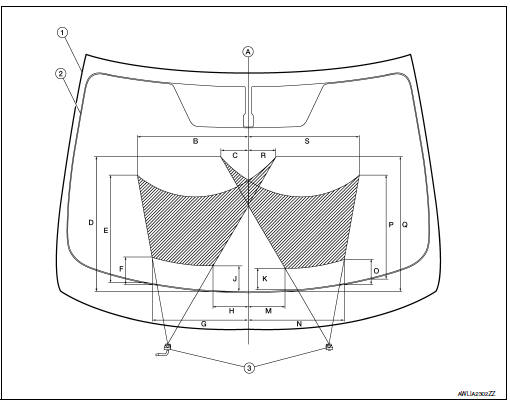

If operating properly, spray positions should match the positions shown. If spray positions do not match, confirm the rear washer nozzle is properly seated and working properly. If the spray positions still do not match as shown, then replace the front washer nozzle. Refer to WW-60, "Removal and Installation - Front Washer Nozzle"

Adjustment

  1. Windshield glass
  2. Black printed area line
  3. Front washer nozzle (LH/RH)
  4.  Center line
  5.  409 mm (16.10 in)
  6.  103 mm (4.06 in)
  7.  497 mm (19.57 in)
  8.  398 mm (15.67 in)
  9.  100 mm (3.94 in)
  10.  356 mm (14.02 in)
  11.  127 mm (5.00 in)
  12.  93 mm (3.66 in)
  13. 80 mm (3.15 in)
  14.  133 mm (5.24 in)
  15. 354 mm (13.94 in)
  16.  90 mm (3.54 in)
  17. 380 mm (14.96 in)
  18. 496 mm (19.53 in)
  19.  103 mm (4.06 in)
  20. 409 mm (16.10 in)
