Nissan Rogue Service Manual: Front wiper arm

Exploded View

1. Front wiper blade (RH)
2. Front wiper arm (RH)
3.  Front wiper arm cover
4.  Front wiper drive assembly
5. Front wiper arm (LH)
6.  Front wiper blade (LH)

Removal and Installation

REMOVAL

1.  Move front wiper into the service position by turning the ignition switch ON, then quickly push the wiper washer switch to the mist position two times within 0.5 seconds.
2.  Turn the ignition switch OFF.
3.  Remove front wiper arm covers.
4.  Remove nuts and remove front wiper arms.

INSTALLATION

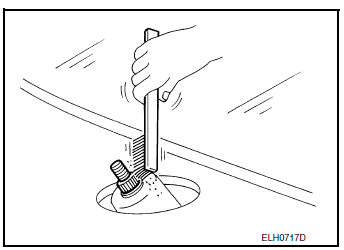

1.  Clean wiper arm mount as shown in the figure to prevent nuts from being loosened.

2. Move front wiper into the service position by turning the ignition switch ON, then quickly push the wiper washer switch to the mist position two times within 0.5 seconds.
3.  Turn the ignition switch OFF.
4.  Adjust front wiper blade position. Refer to WW-64, "Adjustment".
5.  Install front wiper arm by tightening the nuts.
6.  Install front wiper arm covers.
7.  Check that the front wiper blades stop at the specified position.

Adjustment

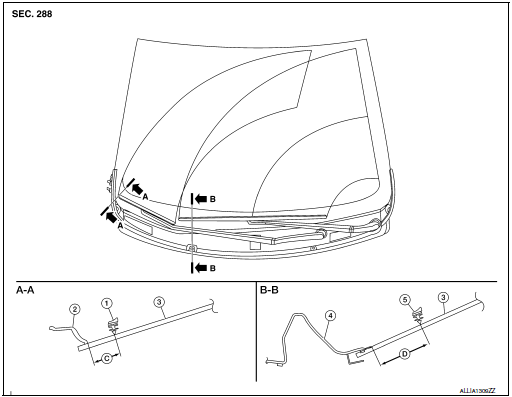

1. Wiper blade (RH)
2. Front fender (RH)
3. Windshield glass
4.  Cowl top cover
5. Wiper blade (LH)
3. 34.9 ± 7.5 mm (1.4 ± 0.3 in)
4. 38.2 ± 7.5 mm (1.5 ± 0.3 in)
