Nissan Rogue Service Manual: Heated seat switch

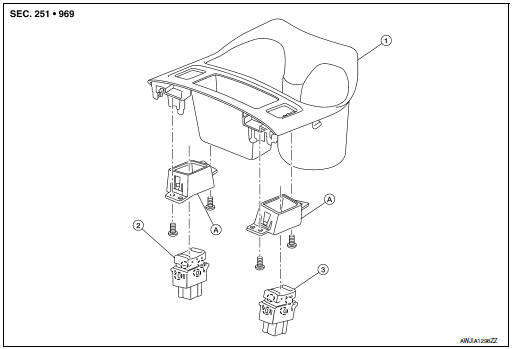

Exploded View
- Center console cup holder
- Driver heated seat switch
- Passenger heated seat switch
- Switch carrier
Pawl
Removal and Installation
REMOVAL
- Remove the center console cup holder. Refer to IP-18, "Exploded View".
- Remove screws from switch carrier and remove switch carrier.
- Release pawls and remove heated seat switch.
INSTALLATION
Installation is in the reverse order of removal.
Lumbar support switch
Exploded View
Seat cushion outer finisher
Lumbar support switch
Clip
Pawl
Removal and Installation
REMOVAL
Using a suitable tool release clips and remove seat cushi ...
