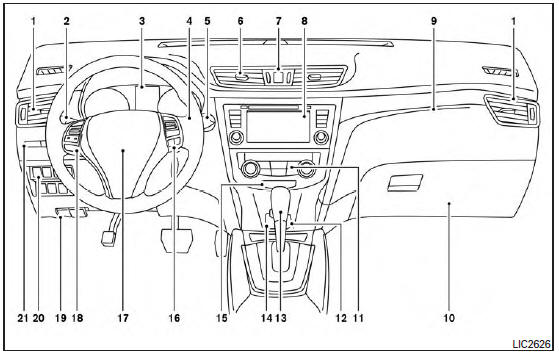

Nissan Rogue Owners Manual: Instrument panel

1. Vent
2.  Headlight/fog light (if so equipped)/turn signal switch
3.  Meters, gauges, warning/indicator lights and Vehicle Information Display
4.  Windshield wiper/washer switch and rear window wiper/washer switch  /Ignition switch (if so equipped)
5.  Push-button ignition switch (if so equipped)
6.  Vent
7.  Hazard warning flasher switch
8.  Radio /Navigation system* (if so equipped)
9. . Front passenger supplemental air bag
10.  Glove box
11.  Heater and air conditioning controls
12.  Power outlet
13.  Shift lever
14.  Auxiliary jack /USB port
15.  Front passenger air bag status light
16.  Cruise control main/set switches (/Bluetooth Hands-Free Phone System (if so equipped)
17.  Driver supplemental air bag/Horn (, )
18.  Control panel and Vehicle Information Display switches
19.  Hood release /Fuel door release
20. Vehicle Dynamic Control (VDC) OFF switch  Sport mode switch  ECO mode switch (if so equipped)  Power liftgate switch (if so equipped) (P.3-28) Power liftgate main switch (if so equipped)  Warning systems switch (if so equipped)  All-Wheel Drive (AWD) lock switch (if so equipped)  Hill descent control switch (if so equipped)
21.  Instrument brightness control /Twin trip odometer reset switch

*: Refer to the separate Navigation System Owner’s Manual (if so equipped).

Refer to the page number indicated in parentheses for operating details.
