Nissan Rogue Service Manual: Interior room lamp control system

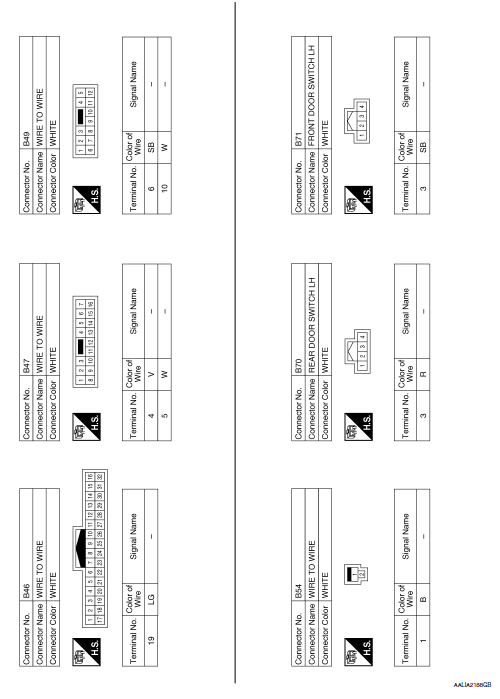

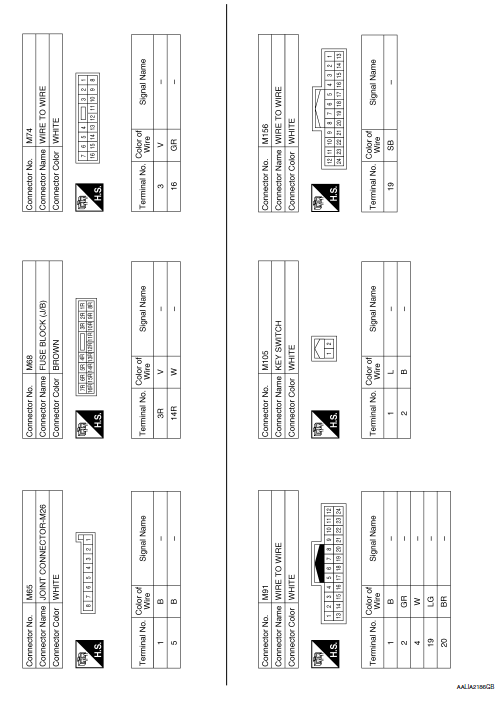

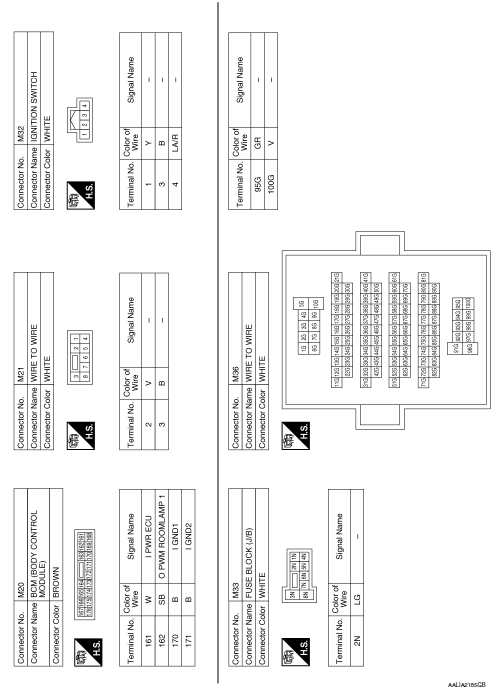

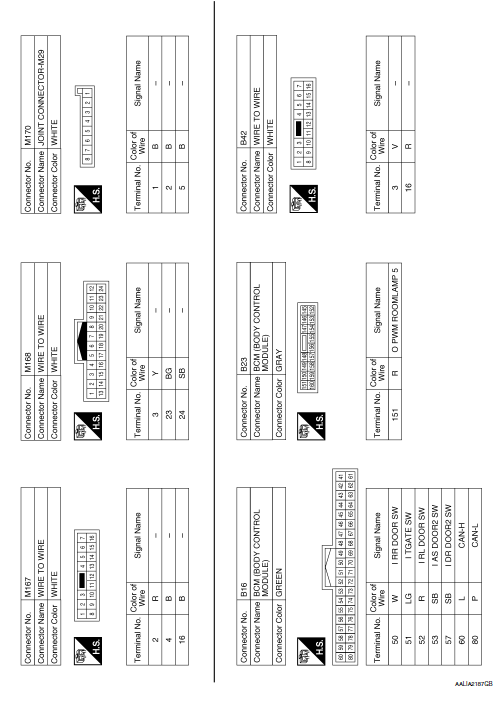

Wiring Diagram

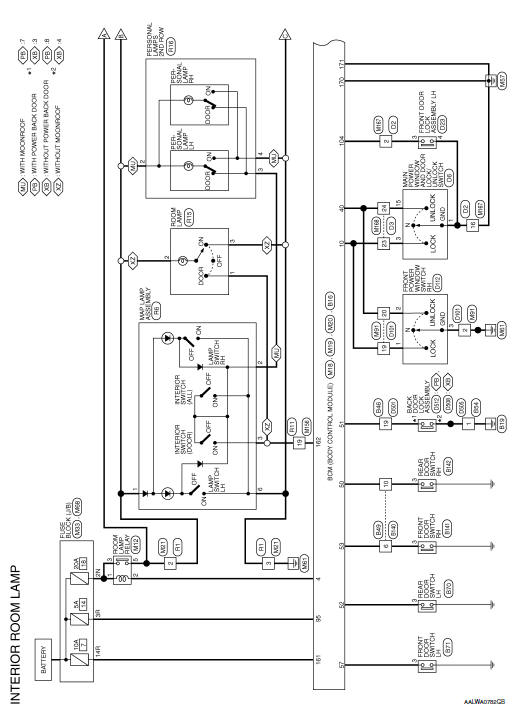

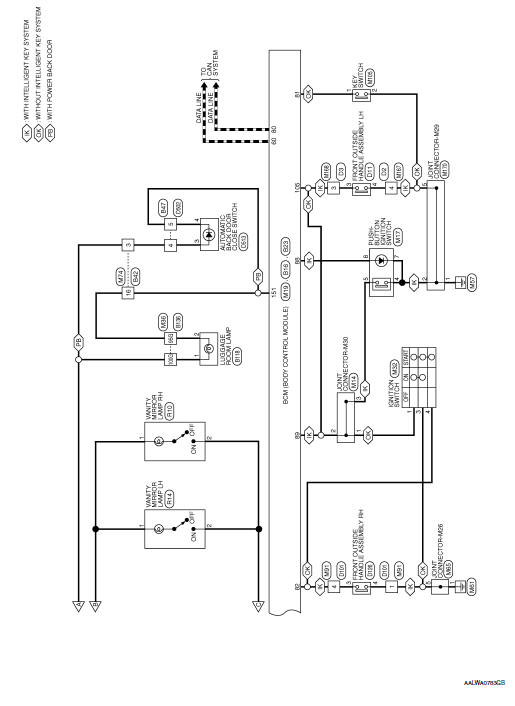

Wiring diagram
...

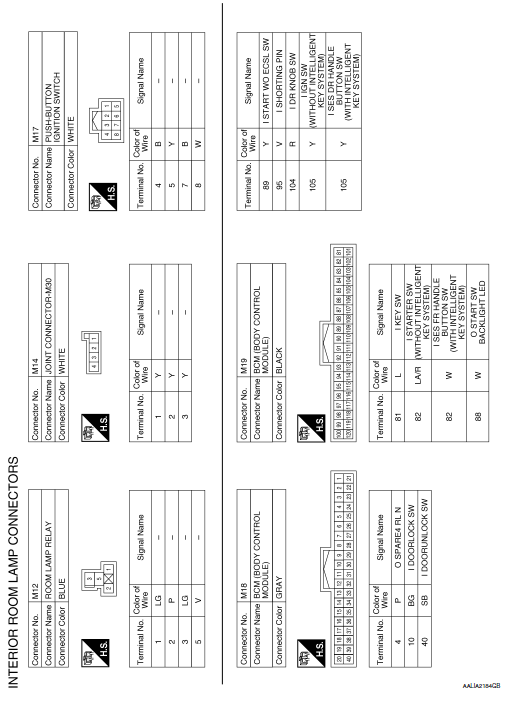

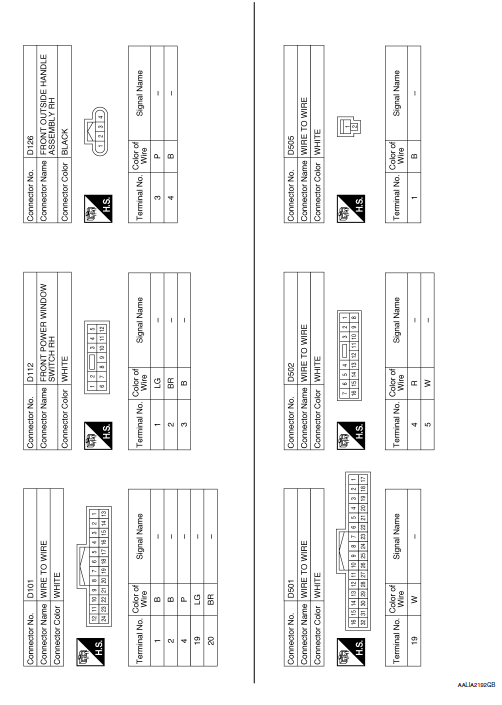

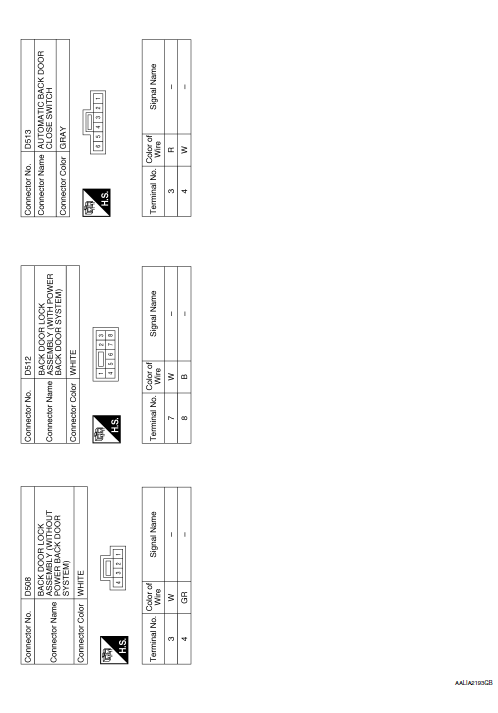

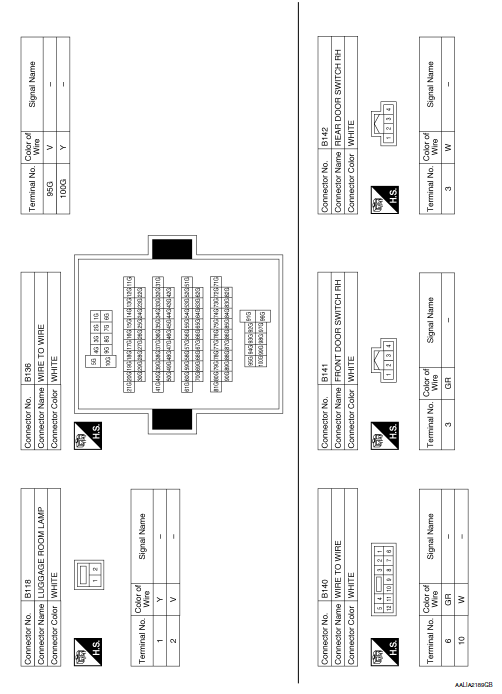

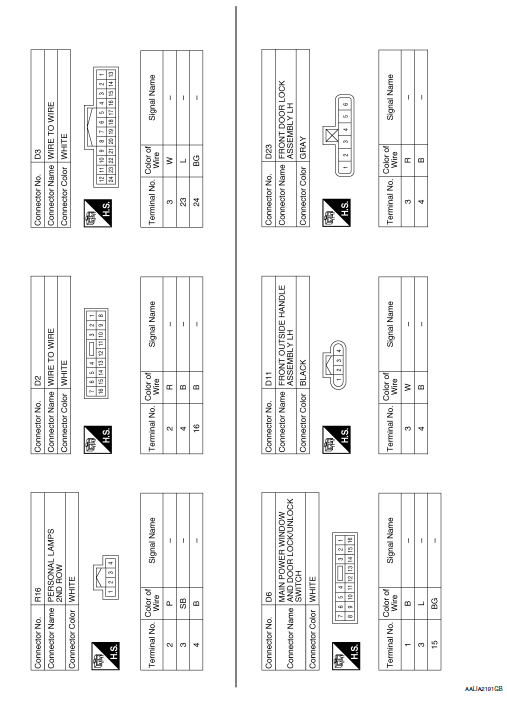

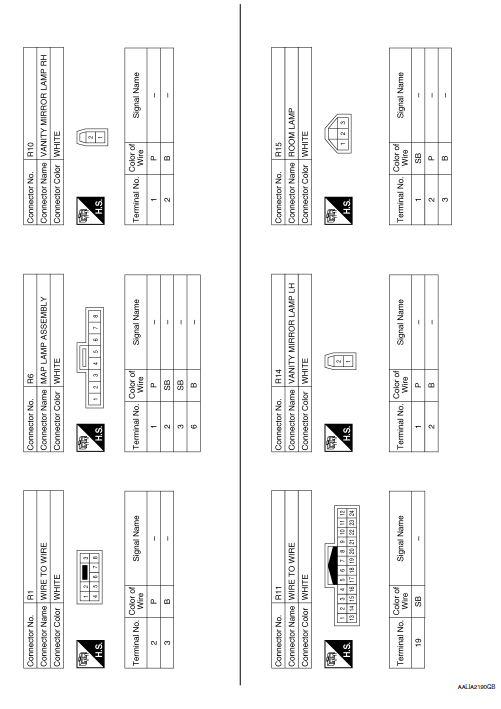

Illumination
Wiring Diagram
...
