Nissan Rogue Service Manual: Water hose

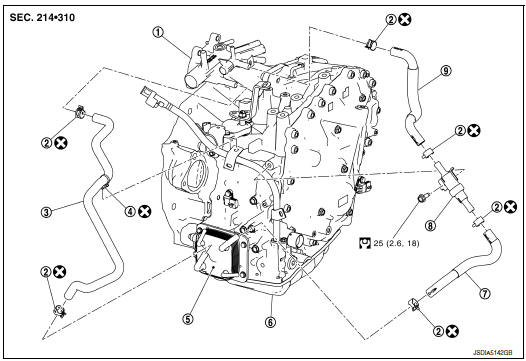

Exploded View

1. Water outlet
2. Hose clamp
3. Water hose A
4. Clip
5. CVT oil warmer
6. Transaxle assembly
7. Water hose B
8. Heater thermostat
9. Water hose C

: Always replace after every disassembly.
: N·m (kg-m, ft-lb)

Removal and Installation

REMOVAL

WARNING: Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

1.  Remove battery tray. Refer to PG-76, "Removal and Installation (Battery Tray)".
2.  Remove engine under cover. Refer to EXT-16, "Exploded View".
3.  Remove CVT fluid charging pipe. Refer to TM-220, "Exploded View".
4.  Remove fender protector side cover. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
5.  Remove water hose A, B, C, and heater thermostat.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Do not reuse hose clamps.
•  Do not reuse hose clip
•  Securely install the water hose clip to the bracket hole of charging pipe.

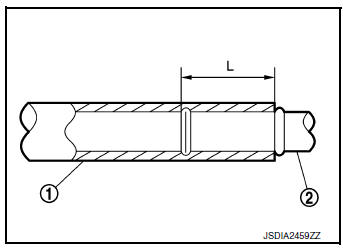

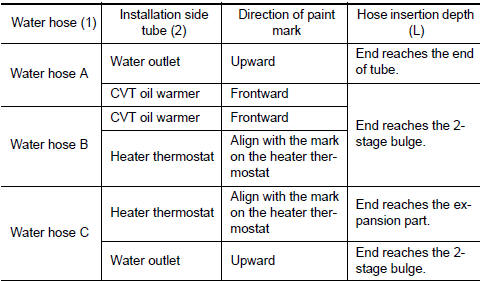

•  Refer to the following when installing water hoses.

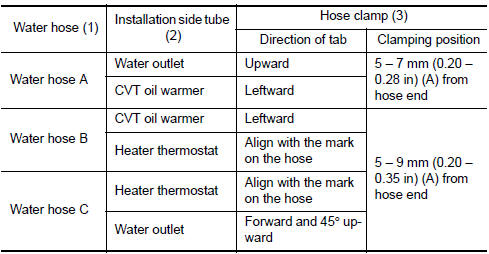

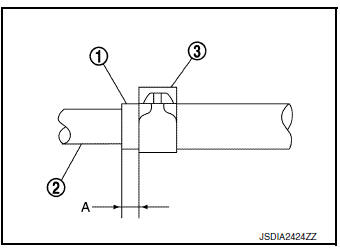

• Refer to the followings when installing hose clamp.

CAUTION: Hose clamp should not interfere with the bulge of tube.

Inspection

INSPECTION AFTER REMOVAL

Heater Thermostat

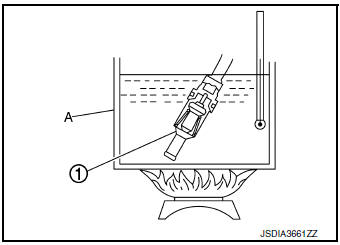

1.  Fully immerse the heater thermostat 1 in a container (A) filled with water. Continue heating the water while stirring.
2.  Continue heating the heater thermostat for 5 minutes or more after bringing the water to a boil.

3. Quickly take the heater thermostat out of the hot water, measure the heater thermostat within 10 seconds.

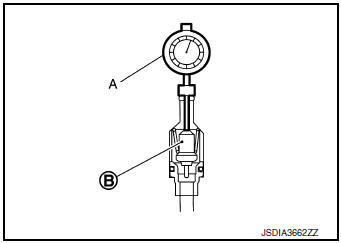

• Place dial indicator (A) on the pellet B and measure the elongation from the initial state.

Standard : Refer to TM-226, "Heater Thermostat".

4. If out of standard, replace heater thermostat.

INSPECTION AFTER INSTALLATION

Start the engine, and check the joints for coolant leakage.
