Nissan Rogue Service Manual: Main power window and door lock/unlock switch
Removal and Installation
REMOVAL
- Remove the front door pull handle bracket (LH). Refer to INT-15, "Removal and Installation".

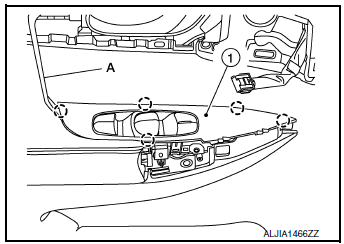

- Release pawls using a suitable tool (A) and remove main power
window and door lock/unlock switch finisher (1).
: Pawl
- Disconnect the harness connectors from the main power window and door lock/unlock switch.

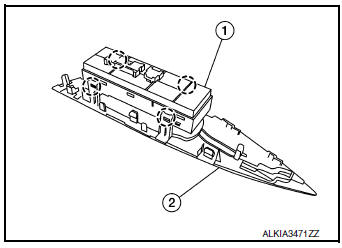

- Release the pawls, then separate the main power window and
door lock/unlock switch (1) from the switch finisher (2).
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
NOTE: When the main power window and door lock/unlock switch is removed or replaced, it is necessary to perform the initialization procedure. Refer to PWC-25, "Work Flow".
Power window and door lock/unlock switch RH
Removal and Installation
REMOVAL
Remove the front door pull handle bracket (RH). Refer to INT-15,
"Removal and Installation".
Release pawls using a suitable tool (A) an ...
