Nissan Rogue Service Manual: Power window and door lock/unlock switch RH
Removal and Installation
REMOVAL
- Remove the front door pull handle bracket (RH). Refer to INT-15, "Removal and Installation".

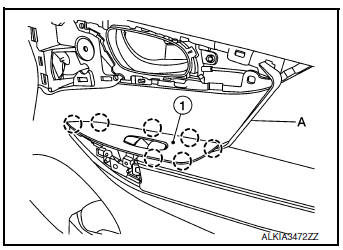

- Release pawls using a suitable tool (A) and remove front door
power window and door lock/unlock switch finisher (RH) (1).
: Pawl
- Disconnect the harness connector from the front door power window and door lock/unlock switch (RH).

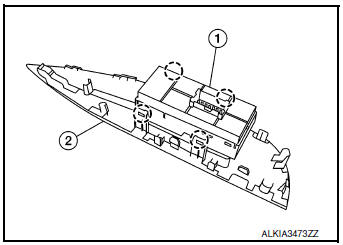

- Release pawls, then separate front power window and door
lock/unlock switch (RH) (1) from switch finisher (2).: Pawl
INSTALLATION
Installation is in the reverse order of removal.
NOTE: When the front power window and door lock/unlock switch (RH) is removed or replaced, it is necessary to perform the initialization procedure. Refer to PWC-25, "Work Flow".
Main power window and door lock/unlock switch
Removal and Installation
REMOVAL
Remove the front door pull handle bracket (LH). Refer to INT-15,
"Removal and Installation".
Release pawls using a suitable tool (A) an ...
Rear power window switch
Removal and Installation
REMOVAL
Remove screw cover (1).
Remove screw (A).
Release pawls using a suitable tool (A) and remove rear power
window switch finisher (1).
: Pa ...
