Nissan Rogue Service Manual: Meter control switch
Removal and Installation
REMOVAL
- Remove the instrument finisher (A). Refer to IP-14, "Exploded View".

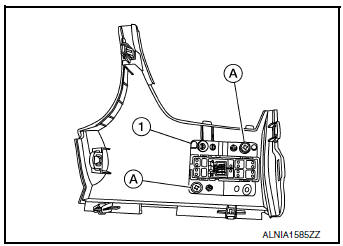

- Remove the screws (A) and the meter control switch (1).
INSTALLATION
Installation is in the reverse order of removal.
