Nissan Rogue Service Manual: Moonroof switch
Removal and Installation
REMOVAL
- Remove map lamp assembly. Refer to INL-55, "Removal and Installation".

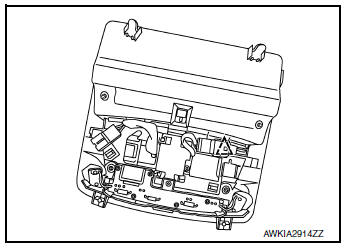

- Using a suitable tool release clip from harness connector.
: Clip

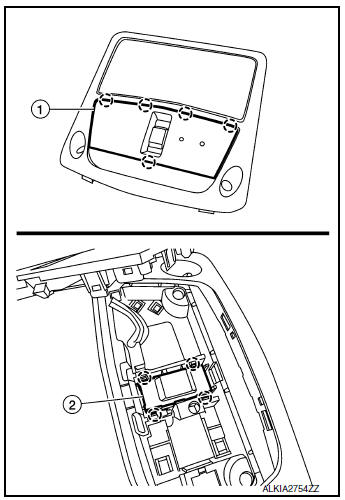

- Using a suitable tool release pawls and remove moonroof switch finisher (1).
- Using a suitable tool release pawls and remove moonroof switch
(2) from the front room/map lamp.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
