Nissan Rogue Service Manual: Side curtain air bag module

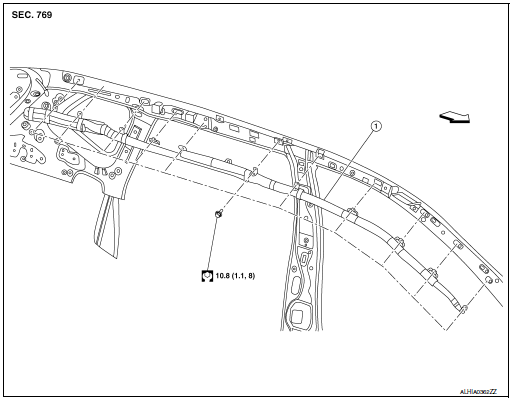

Exploded View

1. Side curtain air bag module

Fron

Removal and Installation

WARNING:

•  Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
•  Always work from the side of air bag module. Do not work in front of it.
•  Do not use air tools or electric tools for servicing.

REMOVAL

1.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
2.  Remove the headlining. Refer to INT-30, "Removal and Installation".
3.  Disconnect the harness connector from the side curtain air bag module.

CAUTION:

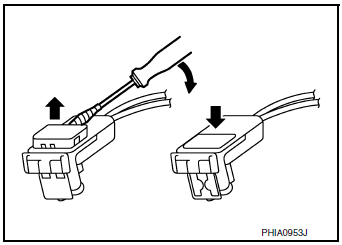

•  For removing/installing the side curtain air bag module harness connector, insert a thin screwdriver wrapped in tape into the notch, lift the lock and remove the harness connector as shown.
•  Install the harness connector with the lock raised, and push the lock into the harness connector as shown.
•  After installing the harness connector, check that the lock is pushed in securely.

4. Remove bolts, and side curtain air bag module.

CAUTION:

•  Replace the side curtain air bag module if it has been dropped or sustained an impact.
•  Do not strike the side curtain air bag module.
•  Do not insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
•  Do not disassemble the side curtain air bag module.
•  Do not expose the side curtain air bag module to temperatures exceeding 90 °C (194 °F).
•  Do not allow oil, grease, detergent or water to come in contact with the side curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

•  Do not damage the harness while installing the side curtain air bag module.
•  Make sure that the side curtain air bag module bracket supporting hooks are securely seated into the body slots before releasing the side curtain air bag module during installation to avoid damaging the side curtain air bag module.
•  Make sure that the anti-twist stripe (black for RH side, blue for LH side) is visible along entire length of side curtain air bag module.
•  If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
•  After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.

Front side air bag module

Removal and Installation

The front side air bag module is part of the front seatback. For removal and installation of the front seatback, refer to SE-55, "Seatback".
