Nissan Rogue Service Manual: Occupant classification system control unit
Removal and Installation
OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT
WARNING:
- Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
- Do not use air tools or electric tools for servicing.
Removal

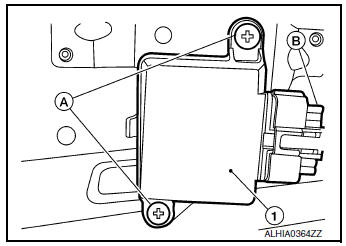

- Remove occupant classification system control unit screws (A).
- Disconnect the harness connector (B) and remove occupant classification system control unit (1).
CAUTION:
- Replace the occupant classification control unit if it has been dropped or sustained an impact.
- Do not strike the occupant classification control unit.
Installation
Installation is in the reverse order of removal.
WARNING:
- Zero point reset must be performed every time the occupant classification system control unit is removed/replaced.
CAUTION:
- Do not damage the harness connector during installation.
- After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
OCCUPANT CLASSIFICATION SYSTEM SENSORS
Removal
The occupant classification sensors are part of the front passenger seat frame. For removal and installation of the front passenger seat frame. Refer to SE-35, "PASSENGER SIDE : Removal and Installation".
Air bag diagnosis sensor unit
Exploded View
Diagnosis sensor unit
Front
Removal and Installation
WARNING:
Before servicing the SRS, turn ignition switch OFF, disconnect
both battery terminals then wait ...
