AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

SWITCHES AND INDICATORS

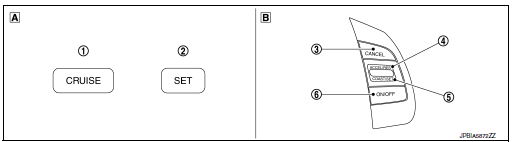

Switches and indicators

A On the combination meter
B On the steering wheel
1 CRUISE indicator
2 SET indicator
3 CANCEL switch
4 ACCEL/RES switch
5 COAST/SET switch
6 ASCD MAIN switch

SET SPEED RANGE

ASCD system can be set the following vehicle speed.

Minimum speed (Approx.)	Maximum speed (Approx.)
40 km/h (25 MPH)	144 km/h (90 MPH)

SWITCH OPERATION

Item	Function
CANCEL switch	Cancels the cruise control driving.
ACCEL/RES switch	Resumes the set speed. Increases speed incrementally during cruise control driving.
COAST/SET switch	Sets desired cruise speed. Decreases speed incrementally during cruise control driving.
ASCD MAIN switch	Master switch to activate the ASCD system.

Refer to EC-47, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description" for ASCD operating instructions.
