Nissan Rogue Owners Manual: Remote keyless entry (if so equipped)
| CAUTION Do not leave the ignition key inside the vehicle when you leave the vehicle. |
key number plate is supplied with your keys.
Record the key number and keep it in a safe place (such as your wallet), not in the vehicle. If you lose your keys, see a NISSAN dealer for duplicates by using the key number. NISSAN does not record key numbers so it is very important to keep track of your key number plate.
A key number is only necessary when you have lost all your keys. If you still have a key, your NISSAN dealer can duplicate it.
Storing remote keyless entry

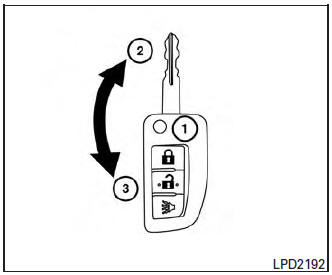

To lock or unlock the vehicle using the key press the release button 1 to unfold the key from the fob.
When storing the key press the release button 1 and push key 2 to fold the key back into fob slot 3 .
Never leave keys in vehicle.

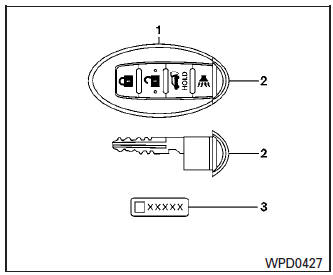

Type A (if so equipped)
- Intelligent Key (two sets)
- Mechanical key
- Key number plate (one plate)

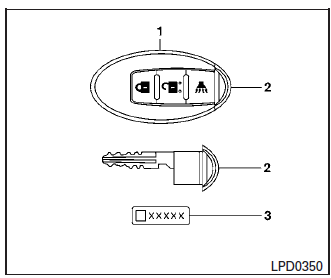

Type B (if so equipped)
Keys
Keys
Jackknife type key
Integrated door lock keyfob with transponder
chip
Key number plate
...
NISSAN Intelligent Key® (if so equipped)
Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intelligent
Key system components and NISSAN Vehicle
Immobilizer System components. As many
as fo ...
