Nissan Rogue Service Manual: Output speed sensor

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / Removal and installation / Output speed sensor

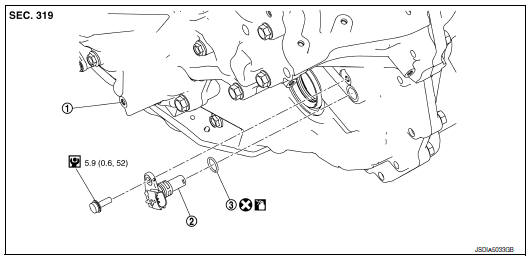

Exploded View

Exploded View

Transaxle assembly
Output speed sensor
O-ring

Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT fluid

Removal and Installation

REMOVAL

Remove engine undercover. Refer to TM-209, "Removal and Installation".
Disconnect the output speed sensor harness connector.
Remove the output speed sensor bolt and remove the output speed sensor.
Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply CVT fluid to the O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to TM-190, "Inspection".

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
