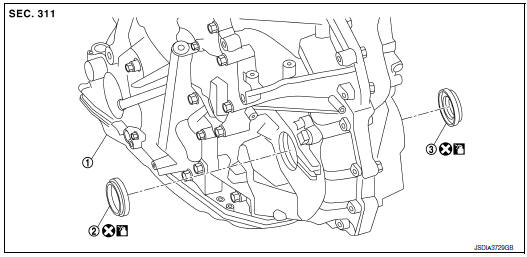

Exploded View

Exploded View

Transaxle assembly
Differential side oil seal (left side)
Differential side oil seal (right side) (FWD models only)

: Always replace after every disassembly.
: Apply CVT fluid

Removal and Installation

REMOVAL

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Remove front drive shaft. Refer to FAX-18, "Removal and Installation (LH)" (FWD) or FAX-50, "Removal and Installation (LH)" [LH (AWD)]or FAX-52, "Removal and Installation (RH)" [RH(AWD)].

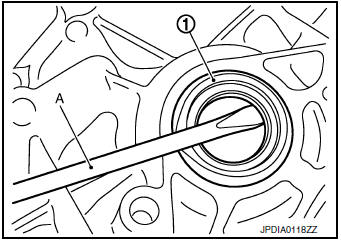

Remove differential side oil seal (1) using suitable tool (A).

CAUTION: Be careful not to scratch transaxle case and converter housing.

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse differential side oil seal.
Apply CVT fluid to differential side oil seals.
When inserting the drive shaft, be sure to use Tool.

Tool number: KV38107900

Install each differential side oil seal evenly using suitable tool so that differential side oil seal protrudes by the dimension (C) and (D) respectfully.

Tool number

(A) : Differential side oil seal (LH)
(B) : Differential side oil seal (RH) (FWD models only)

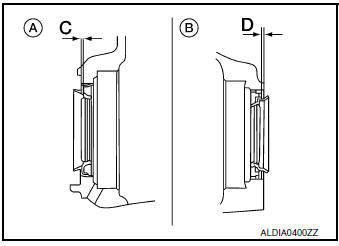

Dimension (C) :Height difference from case end surface is within 1.8 ± 0.5 mm (0.071 ± 0.020 in).

Dimension (D) :Height difference from case end surface is within 2.2 ± 0.5 mm (0.087 ± 0.020 in).

NOTE: The reference is the installation direction of the differential side oil seal.

Drift to be used:

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to TM-190, "Inspection".

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
