Nissan Rogue Service Manual: P0706 transmission range sensor A

DTC Description

DTC DETECTION LOGIC

POSSIBLE CAUSE

•  Harness or connector (Open circuit between ignition switch and transmission range switch/open circuit between transmission range switch and TCM)
•  Transmission range switch
•  Control cable

Harness or connector (CAN communication line is error)

FAIL-SAFE

•  Shift position indicator on combination meter is not displayed
•  Selector shock is large
•  Start is slow
•  Acceleration is slow
•  Lock-up is not performed

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

1.  Turn ignition switch ON.
2.  Shift the selector lever through entire positions from “P” to “L”. (Hold the selector lever at each position for 40 seconds or more.)
3.  Check the first trip DTC.

Is “P0706” detected? YES >> Go to TM-113, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

1.ADJUSTMENT OF CONTROL CABLE

Adjust control cable. Refer to TM-196, "Inspection".

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1.  Turn ignition switch ON.
2.  Select “Self Diagnostic Results” in “TRANSMISSION”.
3.  Touch “Erase”.
4.  Perform “DTC CONFIRMATION PROCEDURE". Refer to TM-113, "DTC Description".

Is “P0706” detected?

YES >> GO TO 3.

NO >> INSPECTION END

3.CHECK POWER CIRCUIT

1.  Turn ignition switch OFF.
2.  Disconnect transmission range switch connector.
3.  Turn ignition switch ON.

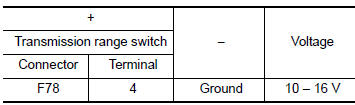

4.  Check voltage between transmission range switch harness connector terminal and ground.

Is the inspection result normal? YES >> GO TO 4.

NO >> GO TO 7.

4.CHECK CIRCUIT BETWEEN TRANSMISSION RANGE SWITCH AND TCM (PART 1)

1.  Turn ignition switch OFF.
2.  Disconnect TCM connector.

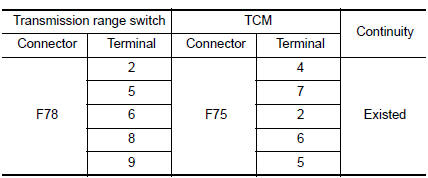

3.  Check continuity between transmission range switch harness connector terminals and TCM harness connector terminals.

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace malfunctioning parts.

5.CHECK CIRCUIT BETWEEN TRANSMISSION RANGE SWITCH AND TCM (PART 2)

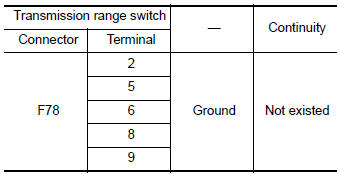

Check continuity between transmission range switch harness connector terminals and ground.

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace malfunctioning parts.

6.CHECK TRANSMISSION RANGE SWITCH

Check transmission range switch. Refer to TM-115, "Component Inspection".

Is the inspection result normal? YES >> INSPECTION END

NO >> Repair or replace malfunctioning parts.

7.CHECK CIRCUIT BETWEEN IPDM E/R AND TRANSMISSION RANGE SWITCH

1.  Turn ignition switch OFF.
2.  Disconnect IPDM E/R connector.
3.  Check continuity between IPDM E/R harness connector terminal and transmission range switch harness connector terminal.

Is the check result normal? YES >> GO TO 8.

NO >> Repair or replace malfunctioning parts.

8.DETECT MALFUNCTIONING ITEMS

Check the following items:

•  Open circuit or short circuit in harness between ignition switch and IPDM E/R. Refer to PG-15, "Wiring Diagram — Ignition Power Supply —".
•  Short circuit in harness between IPDM E/R harness connector terminal 71 and transmission range switch harness connector terminal 4.
• 10A fuse (No. 50, located in the IPDM E/R). Refer to PG-68, "IPDM E/R Terminal Arrangement".
•  IPDM E/R

Is the check result normal? YES >> INSPECTION END

NO >> Repair or replace malfunctioning parts.

Component Inspection

1.CHECK TRANSMISSION RANGE SWITCH

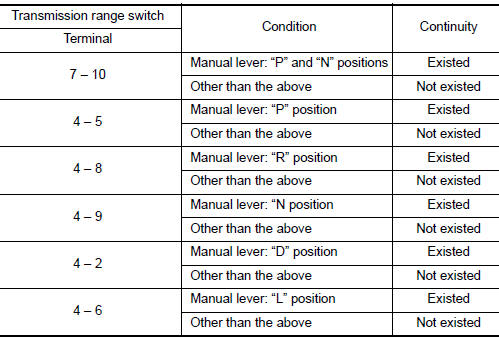

Check continuity between transmission range switch connector terminals.

Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of transmission range switch. Replace transaxle assembly. Refer to TM- 220, "Removal and Installation".
