Nissan Rogue Service Manual: Periodic maintenance
EXHAUST SYSTEM
Inspection

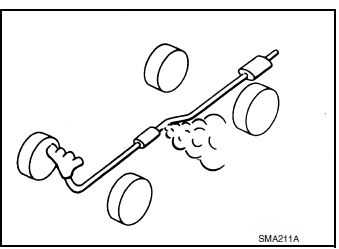

Check exhaust pipes, muffler, and mounting for improper attachment, leakage, cracks, damage or deterioration.
- If anything is found, repair or replace damaged parts.
Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
—
(J-43897-18)
Ox ...
Removal and installation
EXHAUST SYSTEM
Exploded View
Exhaust diffuser
Muffler assembly
Mounting rubber
Mounting rubber
Mounting rubber
Ring gasket
Front exhaust tube
Mounting rub ...
