Nissan Rogue Service Manual: Periodic maintenance
REAR DIFFERENTIAL GEAR OIL
Inspection
OIL LEAKS
Make sure that oil is not leaking from final drive assembly or around it.
OIL LEVEL

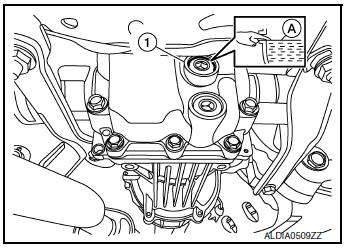

- Remove filler plug (1) and check oil level from filler plug
mounting
hole as shown.
CAUTION: Do not start engine while checking oil level.
- Set a new gasket on filler plug and install it on final drive
assembly.
Refer to DLN-124, "Exploded View".
CAUTION: Do not reuse gasket.
Draining
- Stop engine.

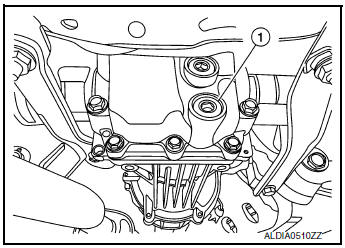

- Remove drain plug (1) and drain gear oil.
- Set a new gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to DLN-124, "Exploded View".
CAUTION: Do not reuse gasket.
Refilling
- Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug hole.
Oil grade and viscosity : Refer to MA-11, "Fluids and Lubricants".
Oil capacity : Refer to DLN-141, "General Specifications".
- After refilling oil, check oil level. Set a new gasket to filler plug, then install it to final drive assembly. Refer to DLN-124, "Exploded View".
CAUTION: Do not reuse gasket.
Symptom diagnosis
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting Chart
Use the chart below to find the cause of the symptom. If necessary, repair or
replace these parts.
×: Applicabl ...
Removal and installation
DRIVE PINION OIL SEAL
Exploded View
Rear final drive assembly
Drive pinion oil seal
Electric controlled coupling assembly
Oil seal lip
Always replace after every
disassembly.
: ...
