Nissan Rogue Service Manual: Periodic maintenance
IN-CABIN MICROFILTER
Removal and Installation
REMOVAL

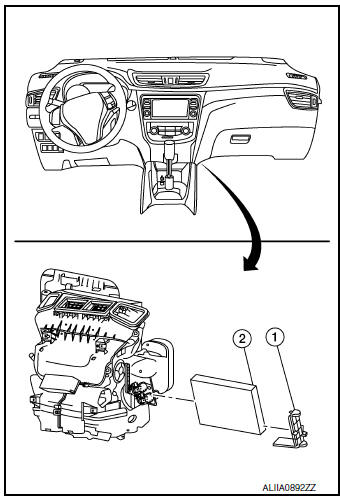

- Release the tab and remove the in-cabin microfilter cover (1)
from under the RH side of the instrument panel.
CAUTION: Use care when lifting up on the tab to avoid damaging it.
- Remove the in-cabin microfilter (2).
CAUTION: If the filter is deformed/damaged when removing, replace it with a new one. A deformed or damaged filter may affect the dust collecting performance.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When installing, handle the filter with extreme care to avoid deforming or damaging the filter.
