Nissan Rogue Owners Manual: Speedometer and odometer
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer

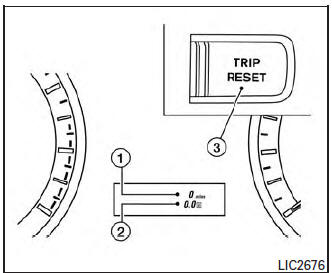

The odometer 1 and the twin trip odometer 2 are displayed below the Vehicle Information Display when the ignition switch is placed in the ON position.
The odometer records the total distance the vehicle has been driven.
The twin trip odometer records the distance of individual trips.
Changing the display
Pushing the TRIP RESET 3 switch on the instrument panel to change the display as follows:
Trip
→ Trip
→ Trip
Resetting the trip odometer:
Pushing the TRIP RESET switch 3 for more than one second resets the currently displayed trip odometer to zero.
Tachometer

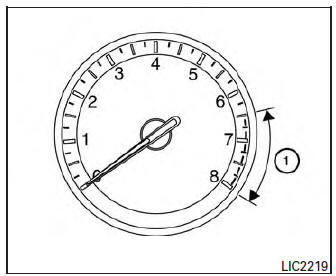

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev engine into the red zone 1 .
| CAUTION When engine speed approaches the red zone, reduce engine speed. Operating the engine in the red zone may cause serious engine damage. |
Meters and gauges
Tachometer
Warning/indicator lights
Vehicle Information Display/Odometer/
Twin trip odometer
Speedometer
Fuel gauge
Engine coolant temperature gauge
...
Engine coolant temperature gauge
Engine coolant temperature gauge
The gauge indicates the engine coolant temperature.
The engine coolant temperature is within the
normal range 1 when the gauge needle points
within the zone ...
