Nissan Rogue Service Manual: Power seat switch

Nissan Rogue Service Manual / Body interior / Seat / Removal and installation / Power seat switch

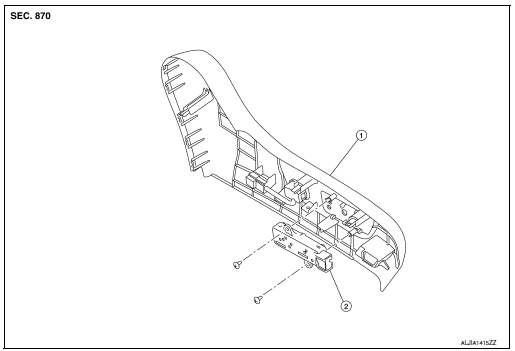

Exploded View

Exploded View

Seat cushion outer finisher
Power seat switch

Removal and Installation

REMOVAL

NOTE: LH shown, RH similar.

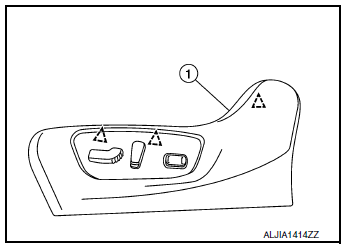

Using a suitable tool release clips and remove seat cushion outer finisher (1).
: Clip

Removal

Disconnect harness connector from power seat switch.
Remove screws and power seat switch.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.
When installing seat cushion outer finisher, check that clips are securely placed into seat cushion frame holes.
