Nissan Rogue Service Manual: Rear door glass

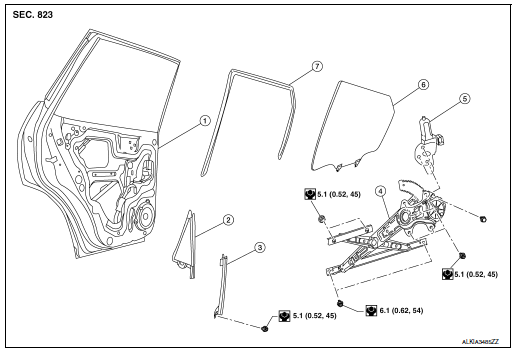

Exploded View

1. Rear door panel
2. Rear door glass corner finisher
3. Rear door glass rear run channel
4. Rear door glass regulator assembly
5. Rear door glass power window motor
6. Rear door glass
7. Rear door glass rubber run channel

Removal and Installation

REMOVAL

1.  Remove the rear door finisher. Refer to INT-18, "Removal and Installation".

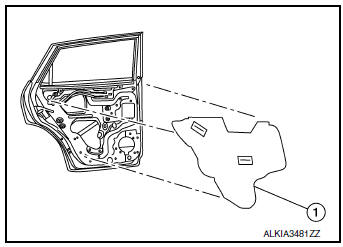

2.  Remove the rear door vapor barrier (1).

3. Temporarily reconnect the rear power window switch.

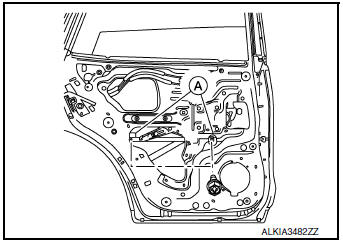

4. Operate the rear power window switch to raise/lower the rear door glass until the rear door glass regulator to rear door glass bolts (A) can be seen and remove.

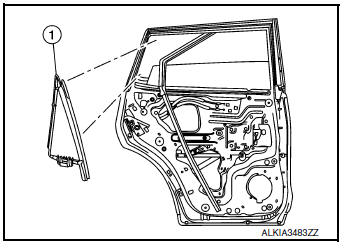

5. Remove screws and rear door corner finisher (1).

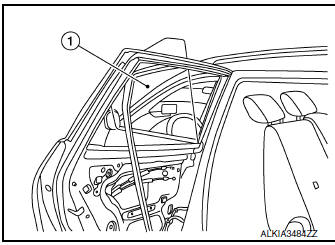

6. Remove the rear door glass (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: • Tighten the rear door regulator bolts to glass specification. Refer to GW-22, "Exploded View"

FITTING INSPECTION

•  Check that the rear door glass is securely fit into the rear door glass run channel.
•  Lower the rear door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash is parallel. If the clearance between the rear door glass and sash is not parallel, loosen the rear door regulator to glass bolts, rear door run channel bolts, and rear door glass bolts to correct the rear door glass position.
